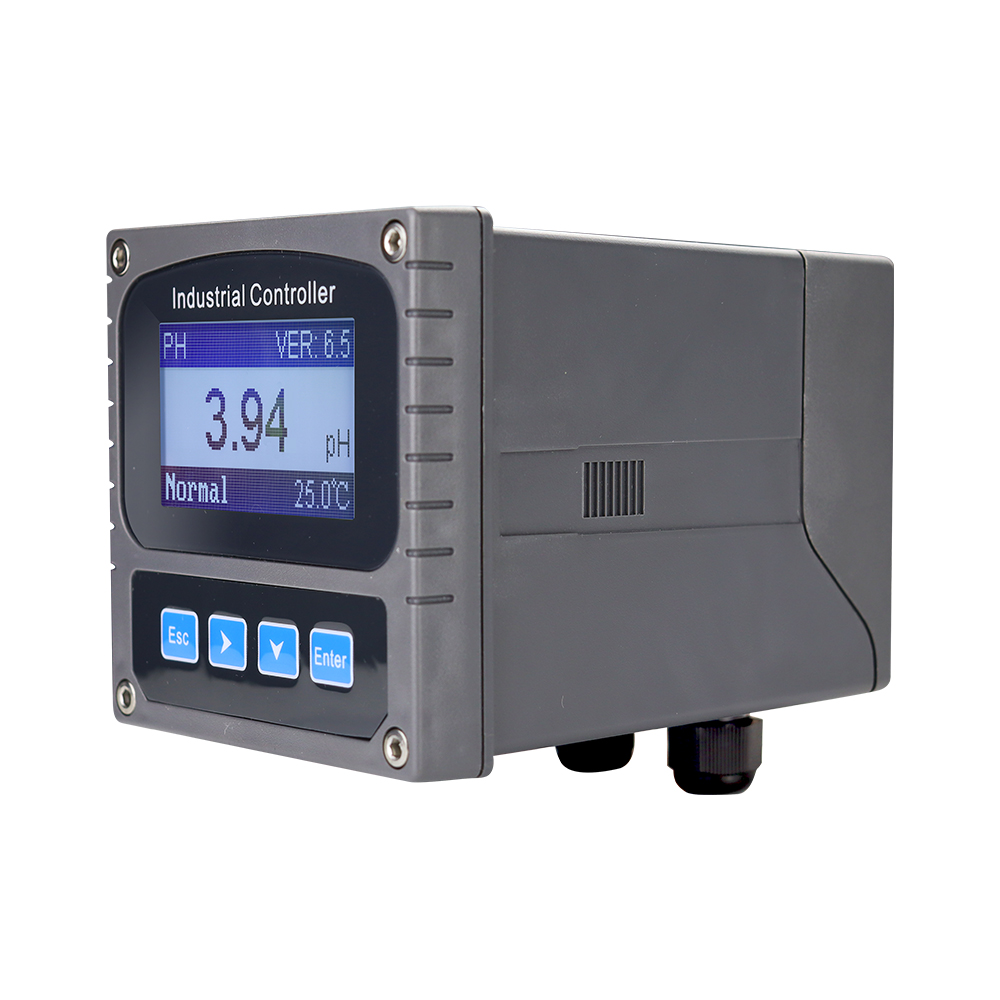

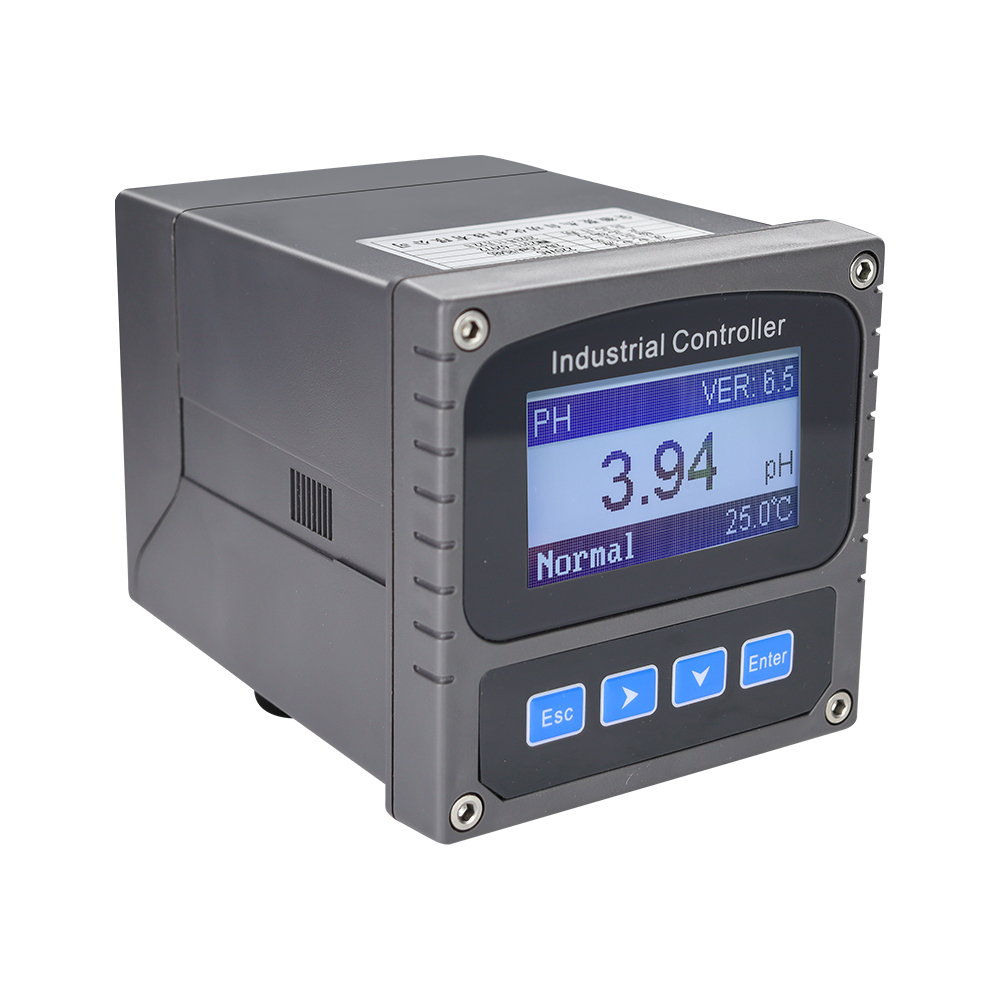

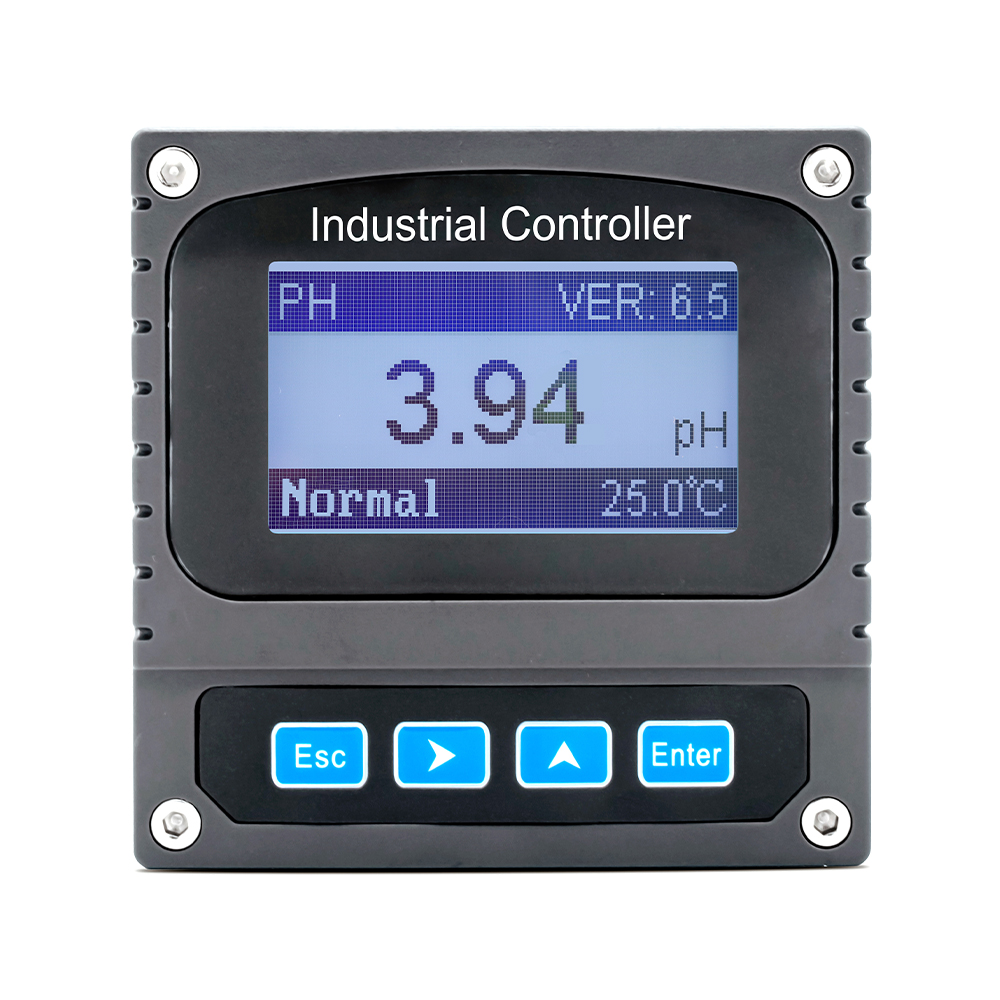

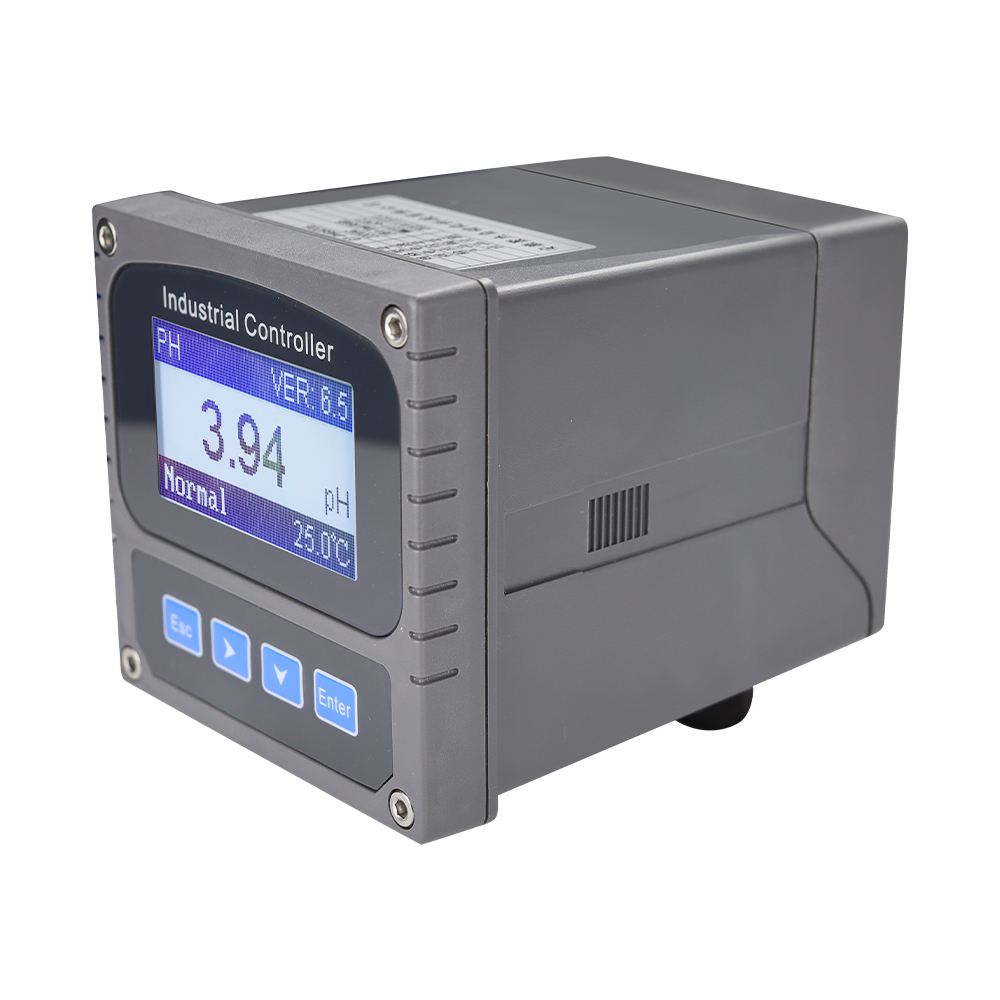

PH meter

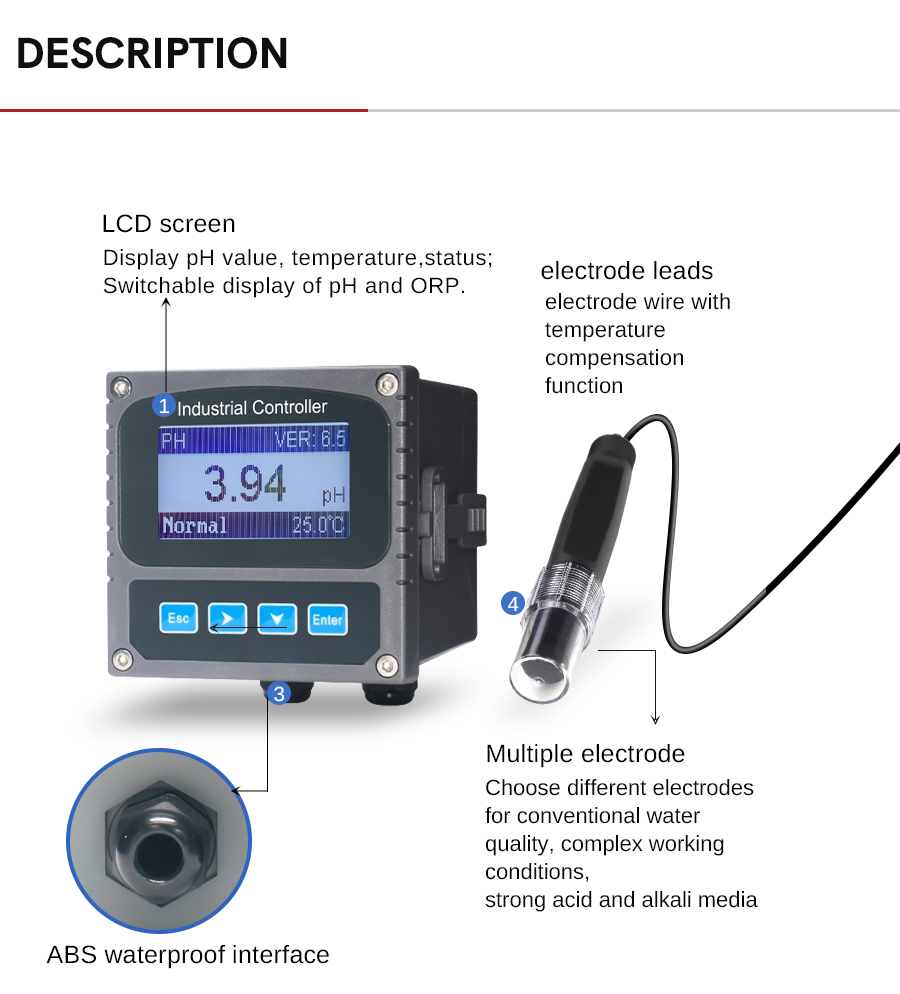

The tester consists of two parts: sensor and secondary meter. It can be equipped with three composite or two composite electrodes to meet various usage situations. Equipped with a pure water electrode, it can be used to measure the pH value of water with a conductivity less than 3 μs/cm (such as chemical feed water, saturated steam, condensed water, etc.).

Characteristics

● LCD display
● A variety of electrodes available
● Auto/manual temperature compensation
● Panel mounting, cabinet mounting, embedded installation
Inquiry
Email us
Download

  • Specification

Technical Specifications & Engineering Parameters

Measurement Principle Glass electrode potentiometric measurement with reference half-cell
Measuring Range pH: 0.00 to 14.00 pH; ORP: -1999 mV to +1999 mV; Temperature: -10.0°C to +130.0°C
Measurement Accuracy pH: ±0.02 pH; ORP: ±1 mV; Temperature: ±0.3°C
Electrode Configuration Industrial composite pH glass electrode with PTFE annular diaphragm (Anti-poisoning)
Calibration Method Automatic 2-point or 3-point calibration recognizing NIST / USA / Custom buffers (4.01, 7.00, 10.01)
Automatic Temp Compensation Pt1000 / NTC10K ATC over -10°C to +120°C range
Output Signals Isolated 4-20mA current output (Scalable pH range), RS485 Modbus-RTU
Relay Controls Dual SPDT alarm relays for high/low acid/alkali dosing pump activation
Operating Pressure Electrode pressure resistance up to 0.6 MPa (6 bar)
Power Supply AC 100-240V 50/60Hz or DC 24V
Controller Enclosure Standard 96×96mm DIN panel mount or IP65 weatherproof wall mount
