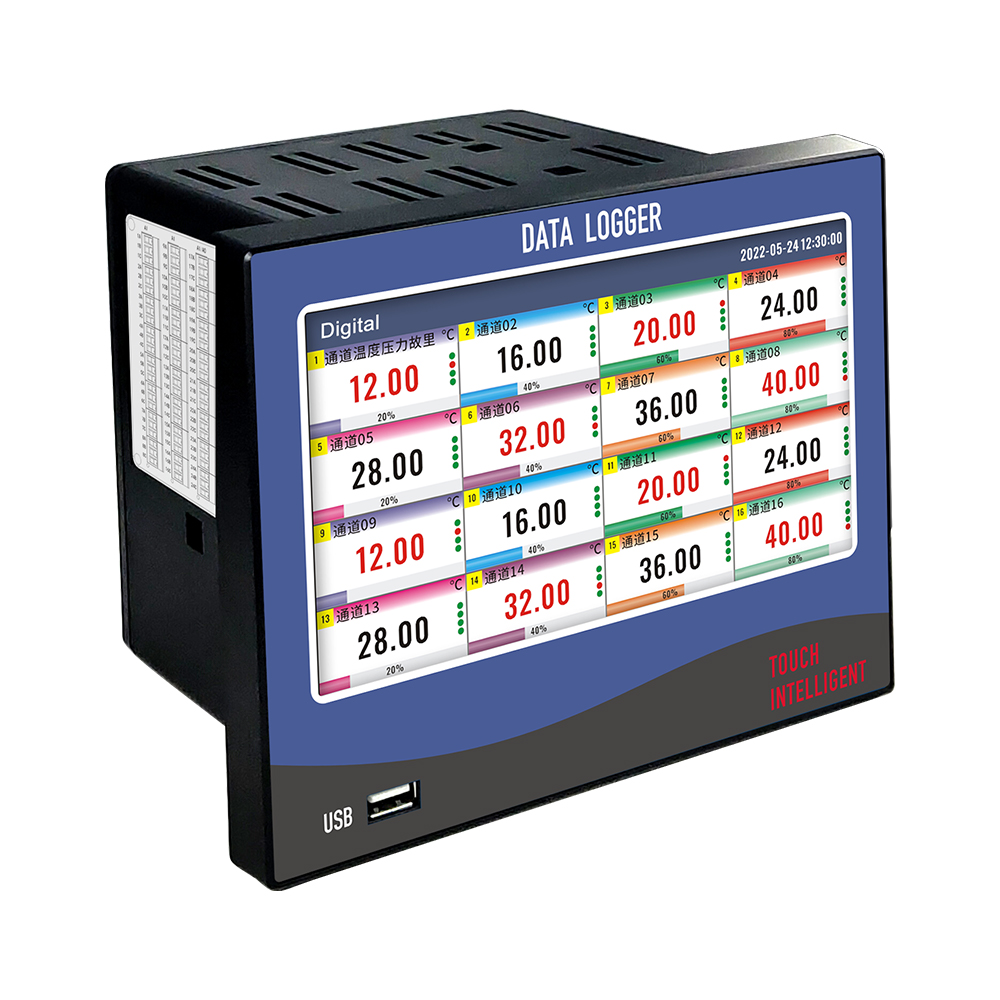

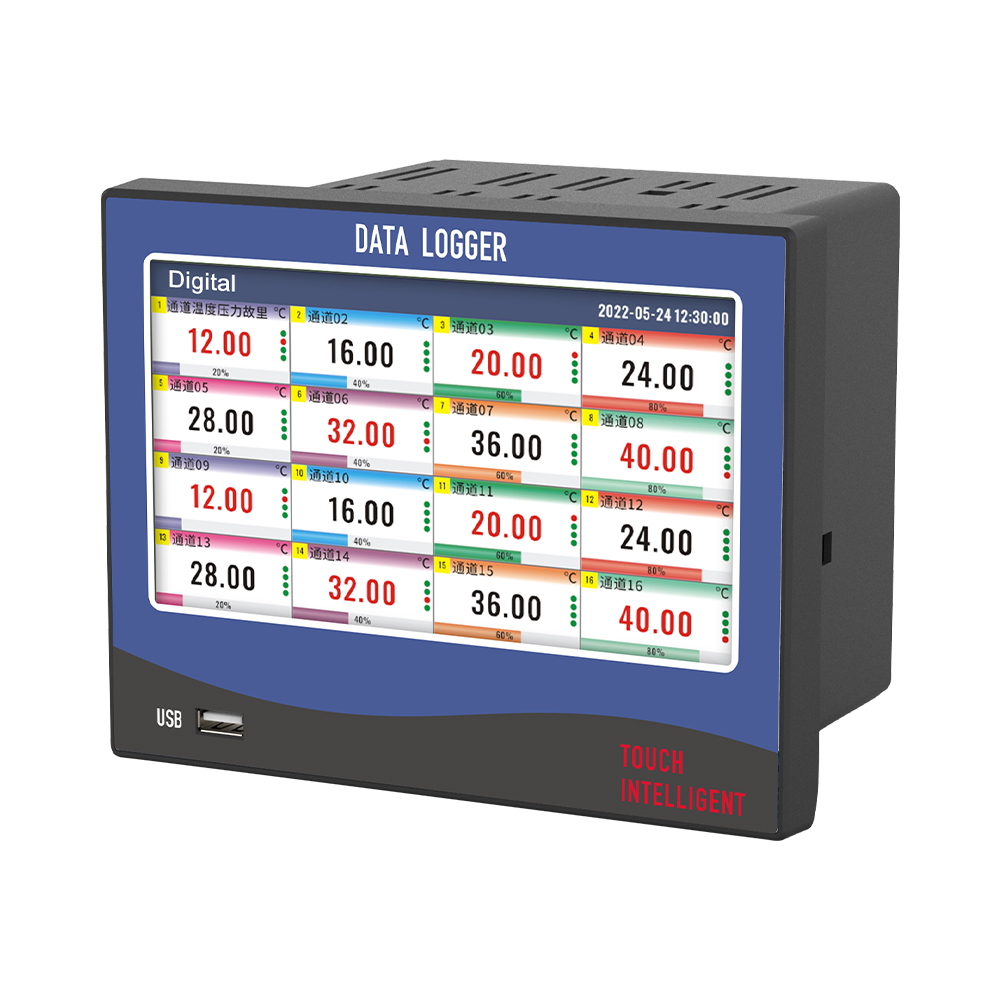

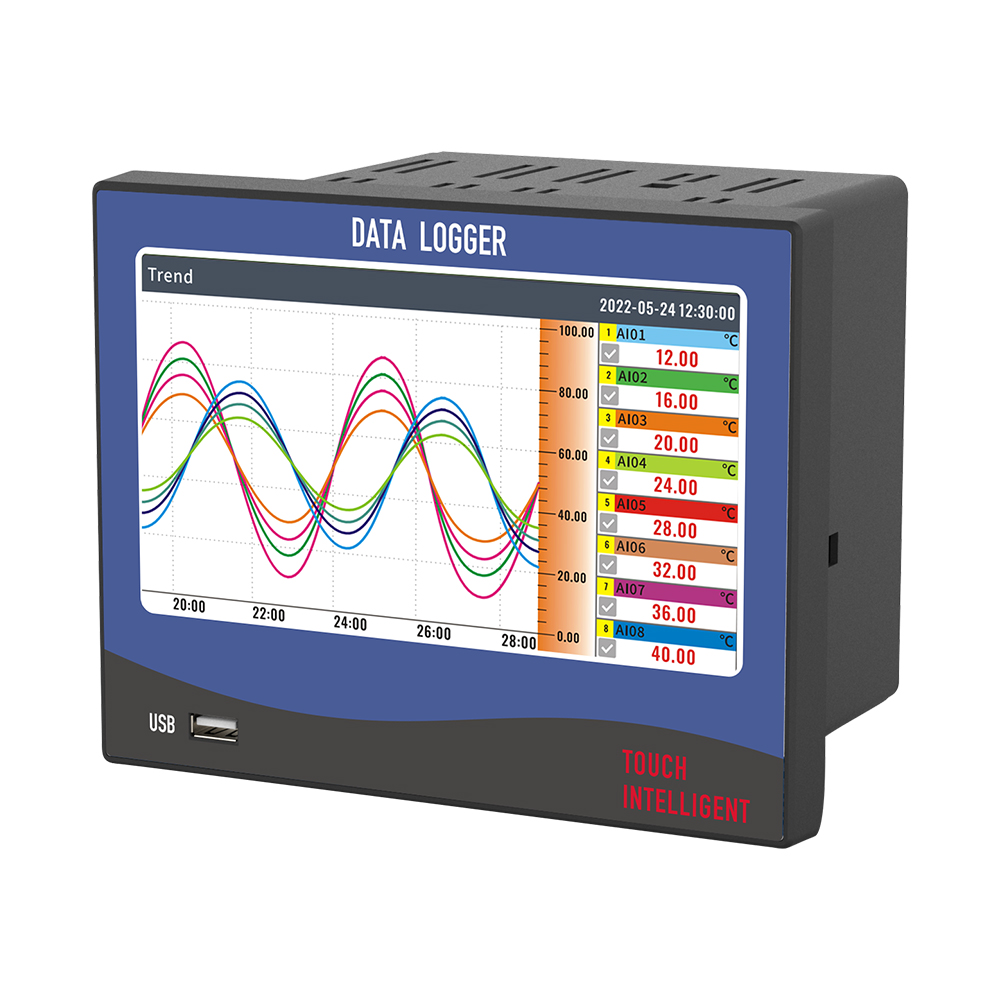

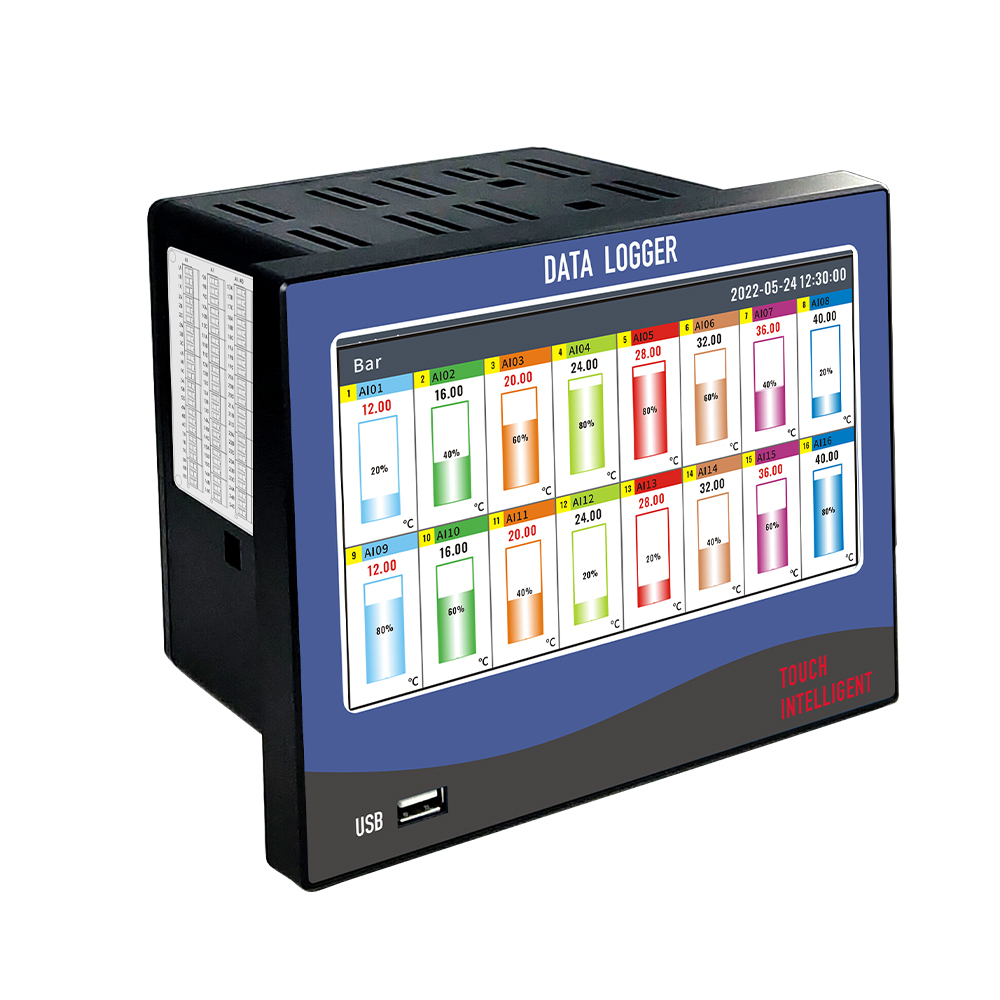

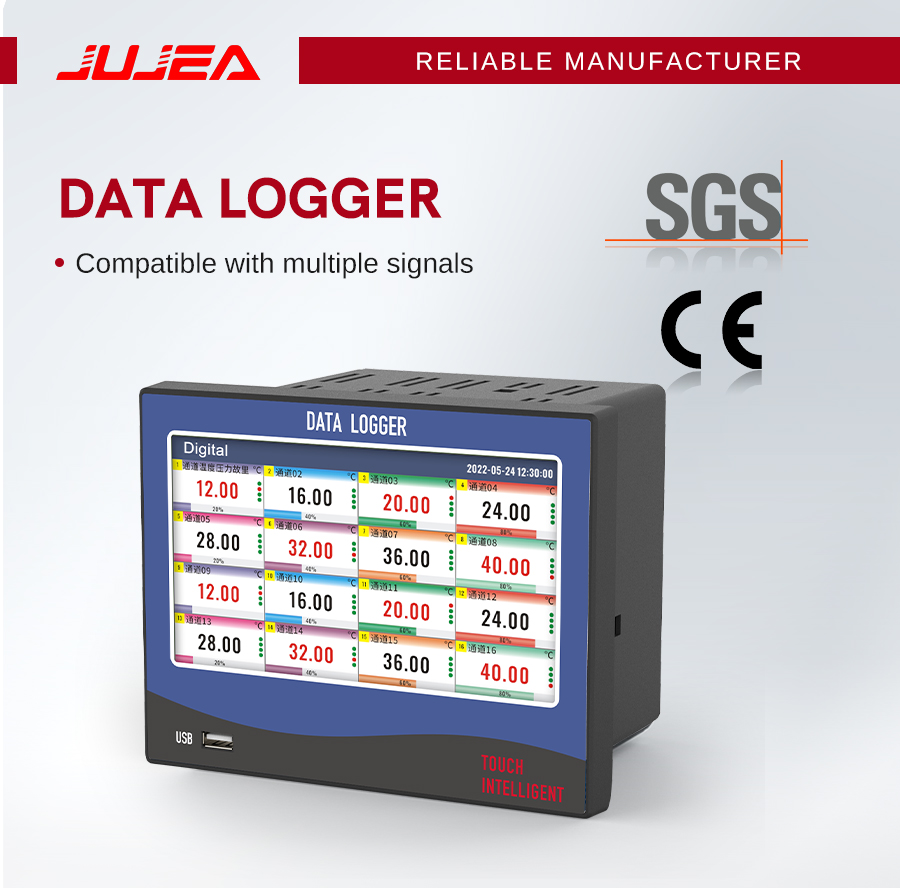

GT72R Data logger

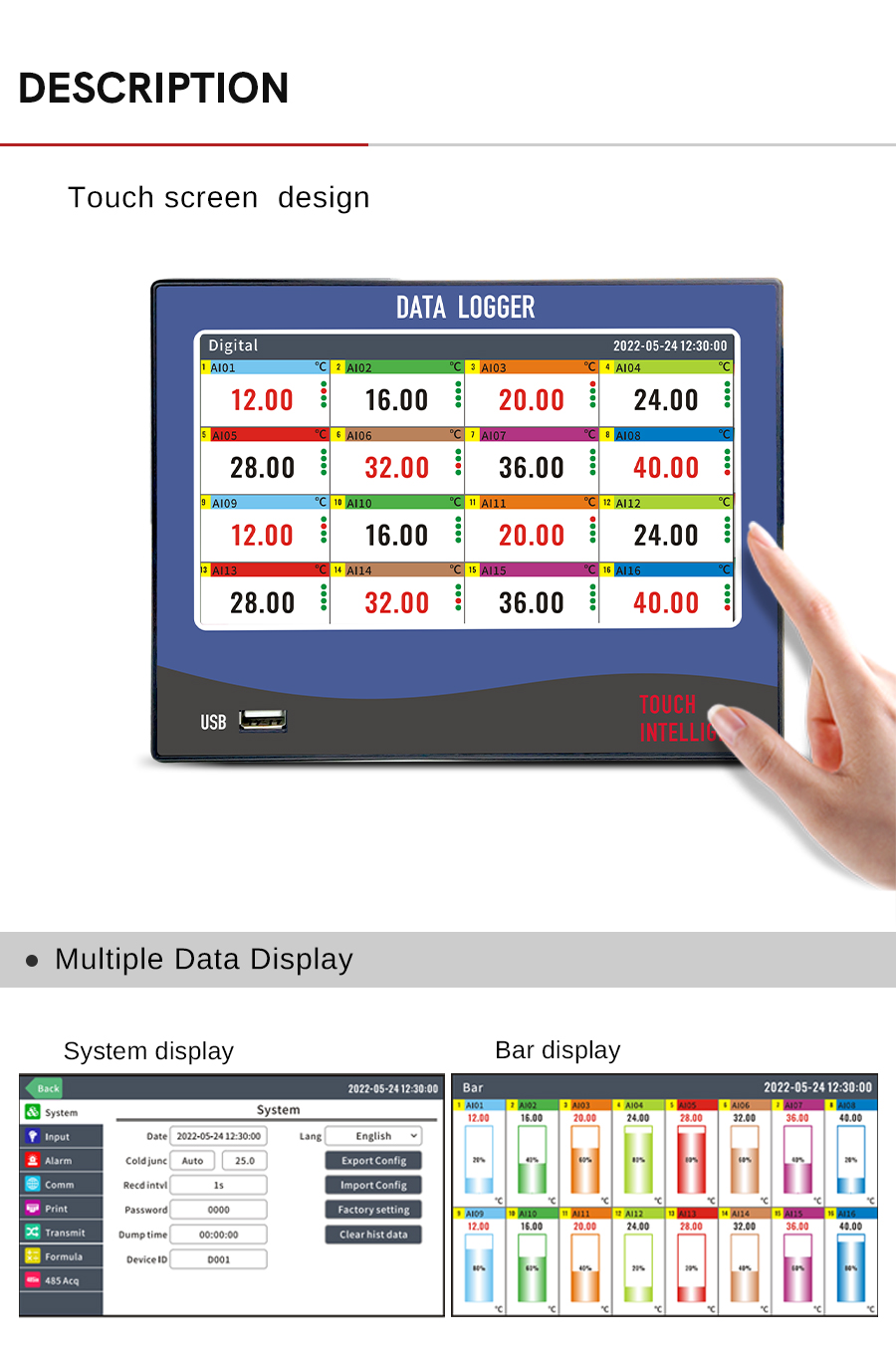

JUJEA's new color touch screen data logger adopts a resistive touch screen and can switch the display setting interface at will, which is fast and convenient. Supports 32 channels of analog signal input, and has the advantages of alarm function, output function, recording function, communication function, USB transfer, etc.

Characteristics

● High-definition 7-inch color touch display
● Up to 32 channels of universal signal input
● RS485 communication interface-standard Modbus RTU
● Support customization
Inquiry
Email us
Download

  • Specification

Technical Specifications & Engineering Parameters

Display Panel 5.6-inch Color TFT LCD display with wide viewing angle
Input Channel Capacity 4 to 16 universal isolated analog inputs
Signal Compatibility Standard T/C, RTD Pt100/Pt1000, 4-20mA, 0-20mA, 0-5V, 1-5V, 0-10V
Basic Accuracy ±0.2% of Full Scale
Internal Flash Memory 256MB non-volatile storage, records up to 10 years at 1-minute interval
Data Export Interface Front-panel USB 2.0 host port for FAT32 flash drive CSV / Excel data retrieval
Alarm Relay Outputs Up to 8 programmable SPST relay outputs (AC 250V / 3A, DC 30V / 3A)
Communication Interface Isolated RS485 Modbus-RTU, supports multi-drop bus networks
Power Consumption < 15W under full channel configuration
Power Supply 85-265V AC 50/60Hz or 24V DC ±10%
Mechanical Cutout Standard 144×144mm DIN panel mounting
