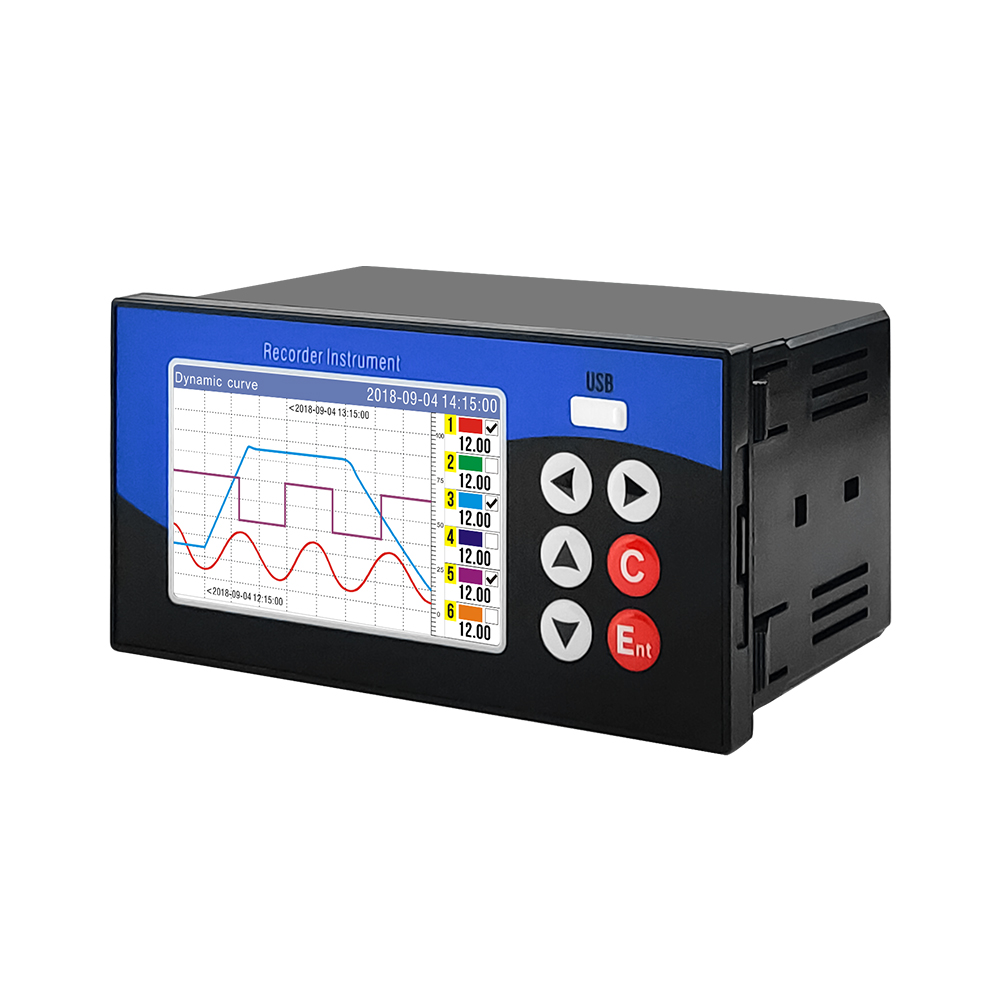

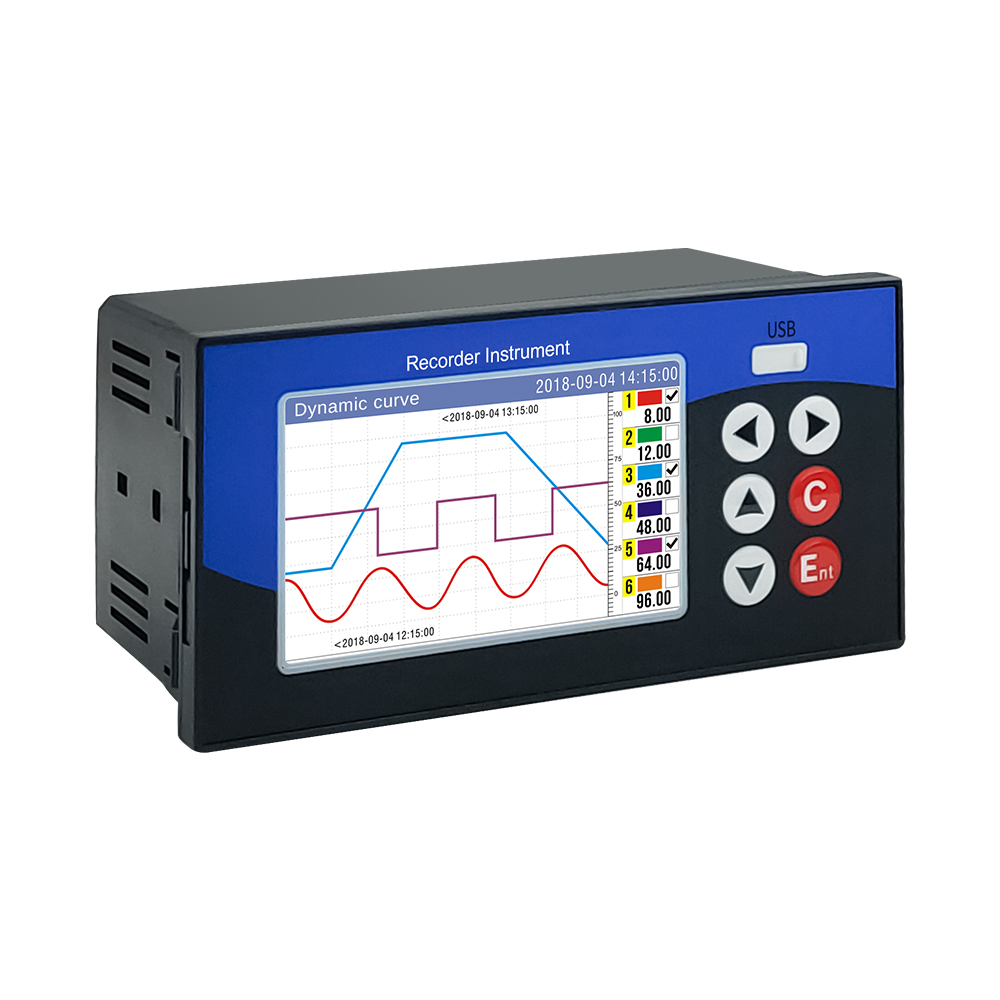

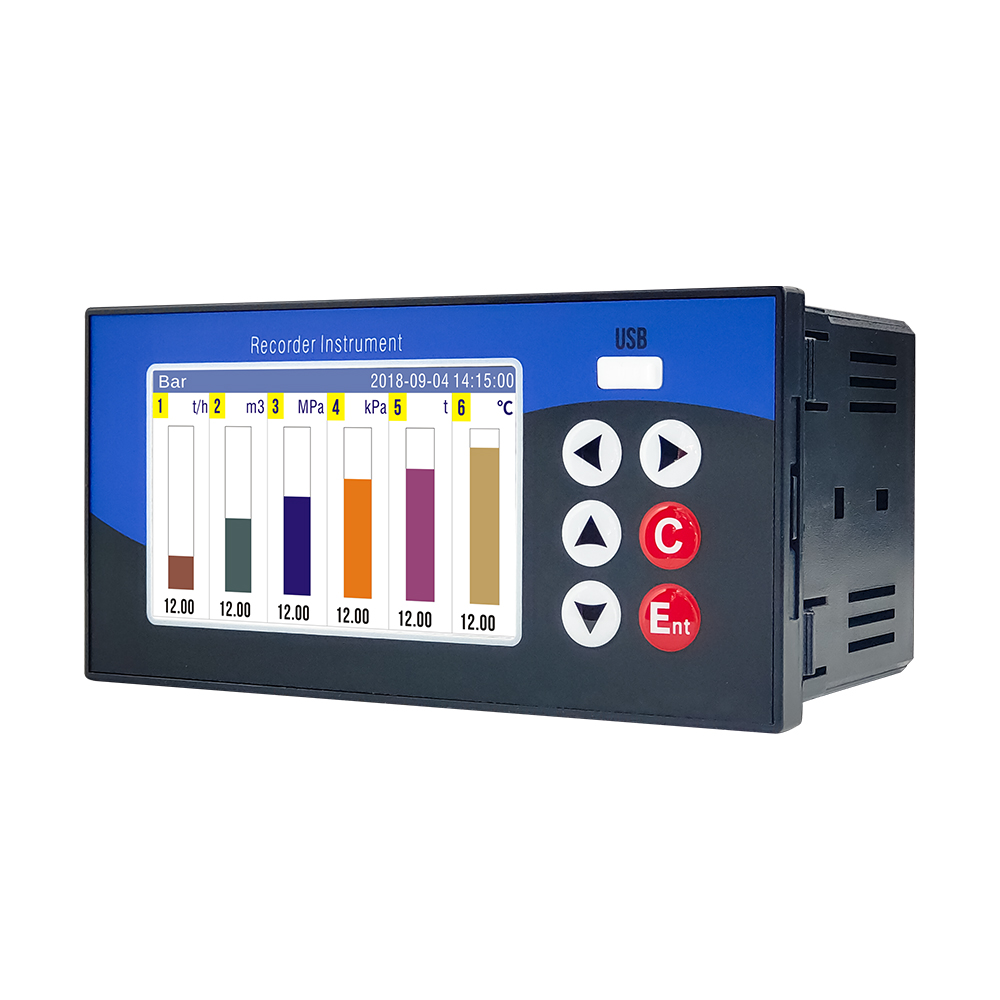

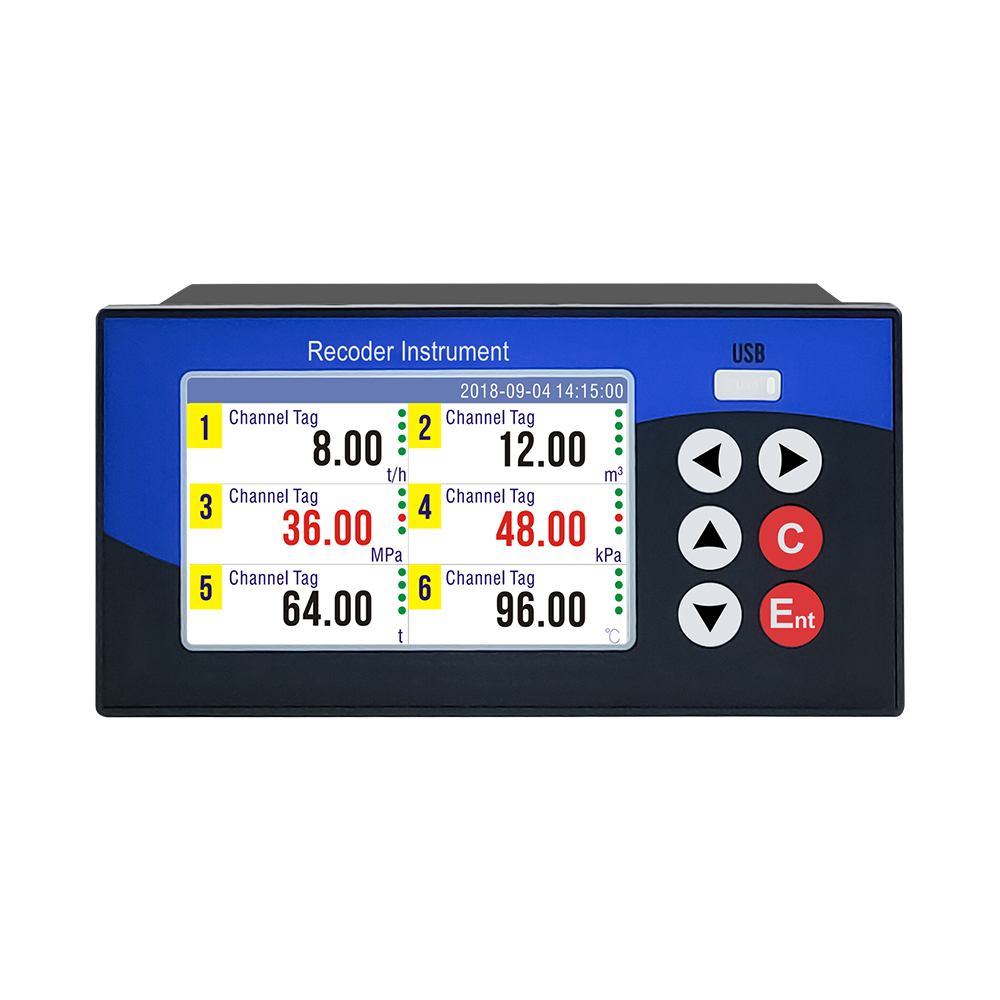

GT68R Data logger

This product is an instrument that processes the input signals that need to be monitored and recorded at industrial sites through high-performance microprocessors and converts them into signals that can be identified and read. On the one hand, it displays various forms of images on the high-resolution LCD screen. On the other hand, the monitoring signal data is stored in the large-capacity memory chip inside the instrument, and data and graphics can be queried, read and printed directly on the instrument.

Characteristics

● High-definition color LCD screen

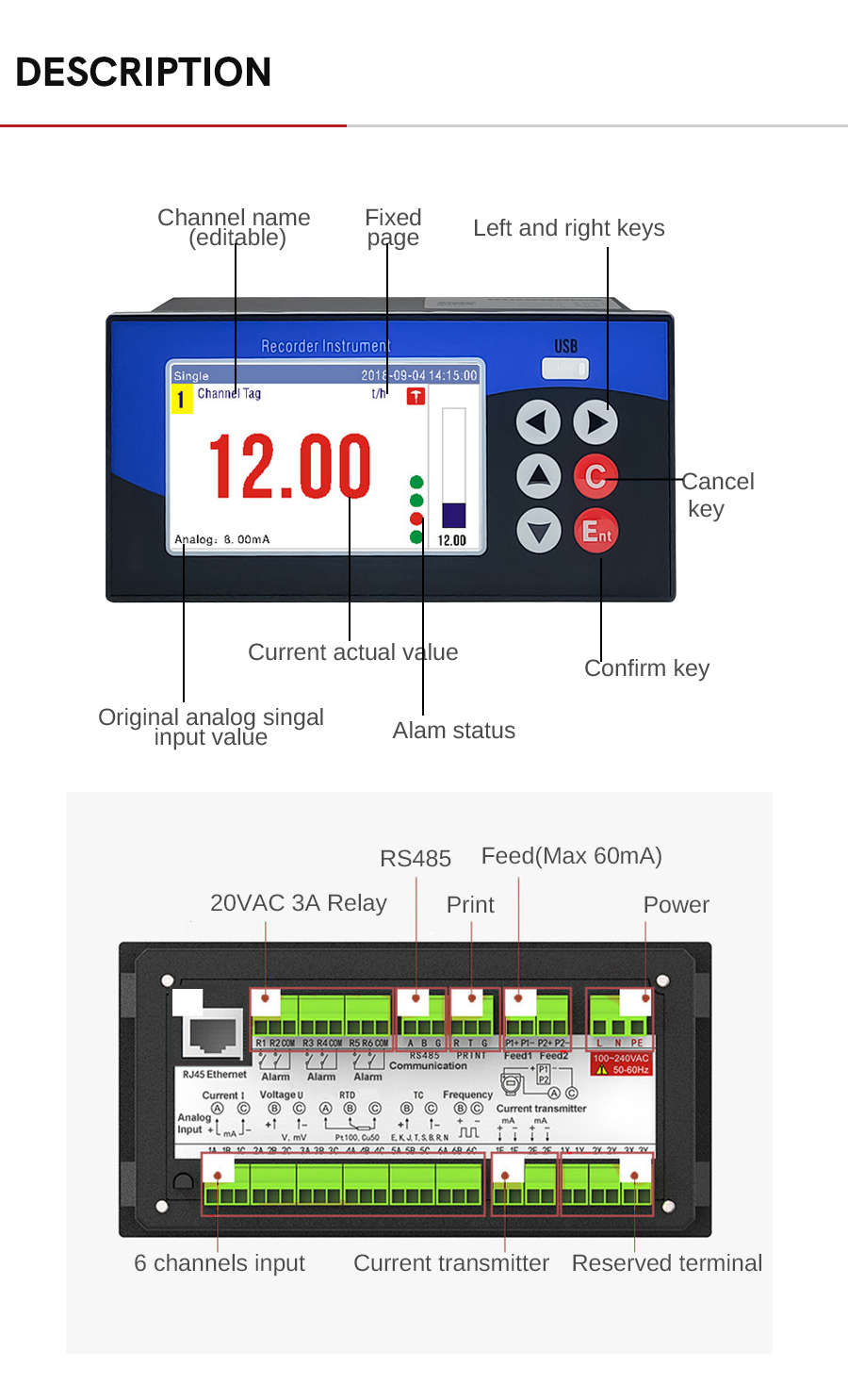

● 6 channels of universal signal input
● 1 channel RS485 communication
● USB2.0 high-speed data backup interface
  • Specification

Technical Specifications & Engineering Parameters

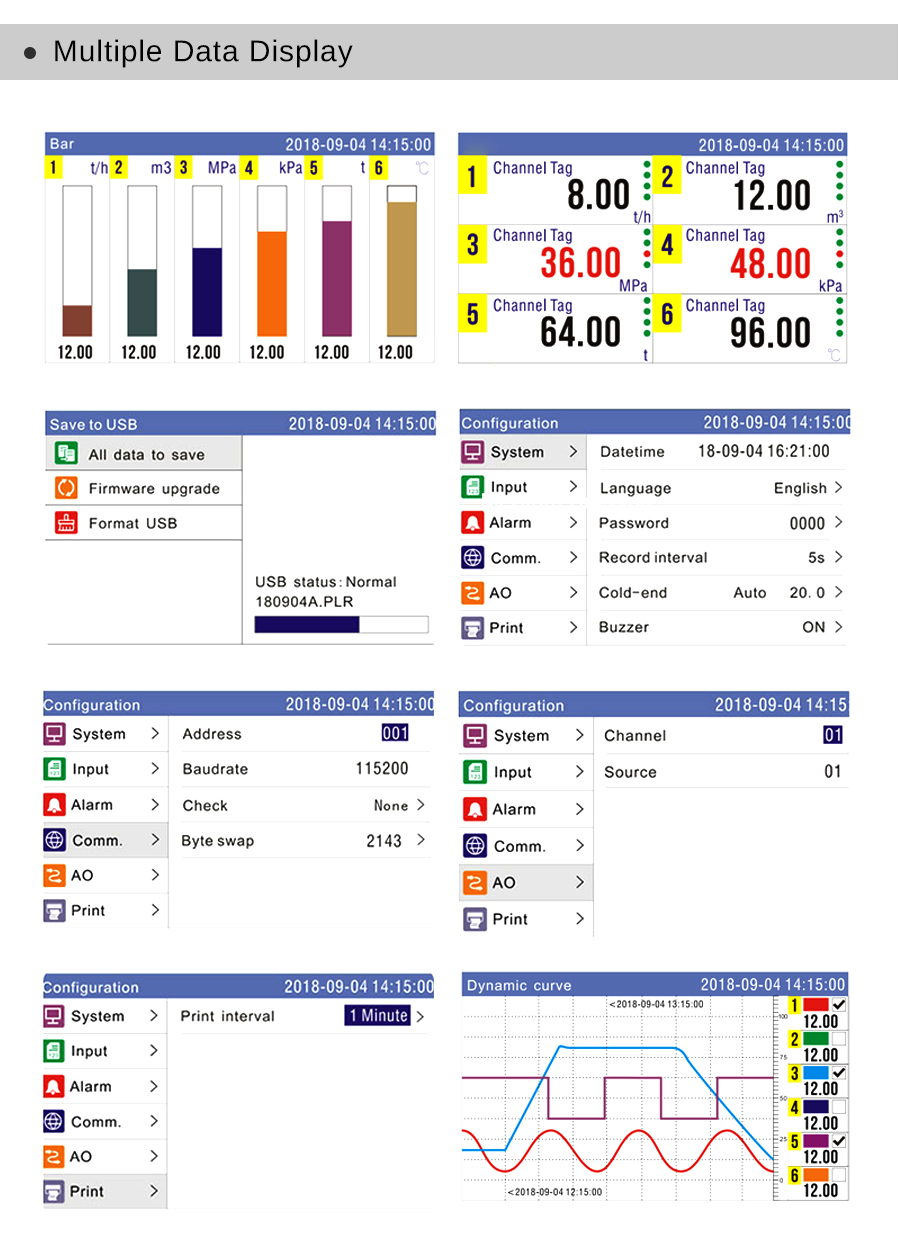

Display Screen 3.5-inch Color TFT LCD with multi-window monitoring display
Number of Channels 1 to 8 universal isolated input channels

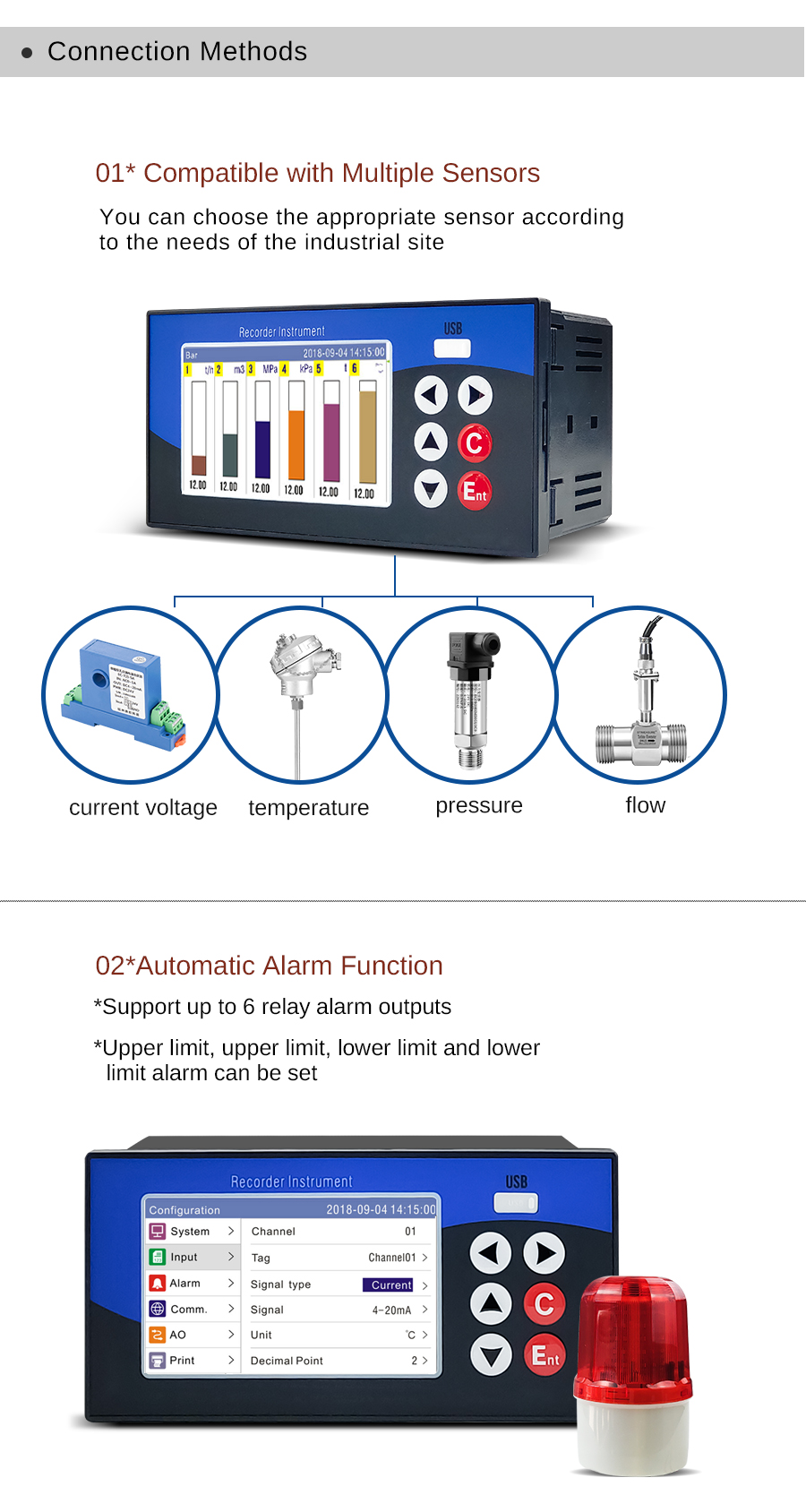

Supported Sensor Inputs RTD (Pt100, Cu50), Thermocouple (K, S, E, T, J, B), 4-20mA, 0-10mA, 0-5V, 0-10V
Measurement Precision ±0.2% Full Scale
Data Logging Rate Selectable: 1s, 2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min
Storage & Backup Built-in 128MB flash memory + U-disk export utility with companion PC analysis software
Sensor Excitation Power Isolated DC 24V / 50mA power output for two-wire pressure/temperature transmitters
Alarm & Control Up to 6 relay alarm outputs with high/low limit latching
Communication RS485 serial communication with Modbus-RTU protocol
Power Supply 100-240V AC 50/60Hz or 24V DC
Housing Dimensions Standard 96×96×85mm DIN panel enclosure (Cutout: 92×92mm)
