Technical Specifications & Engineering Parameters
| Sensor Type | Sanitary flush diaphragm piezoresistive pressure transmitter |
| Pressure Range | -0.1 to 0...0.05 MPa up to 25 MPa |
| Measurement Accuracy | ±0.25% F.S. or ±0.5% F.S. |
| Flush Membrane Feature | Flush 316L diaphragm eliminates dead cavities, preventing clogging from viscous liquids, pastes, and slurries |
| Applicable Industries | Food & beverage, dairy, brewing, pharmaceutical, paint, wastewater slurries |
| Process Connections | Sanitary Tri-Clamp 1.5" / 2", SMS, DIN 11851 milk coupling, G1" flush thread |
| Medium Temperature | -20°C to +130°C (CIP/SIP steam sterilization up to 150°C for 30 minutes) |
| Output Signal | 4-20mA two-wire current loop (Optional 0-10V DC, RS485 Modbus) |
| Power Supply | 12V to 36V DC (Standard 24V DC) |

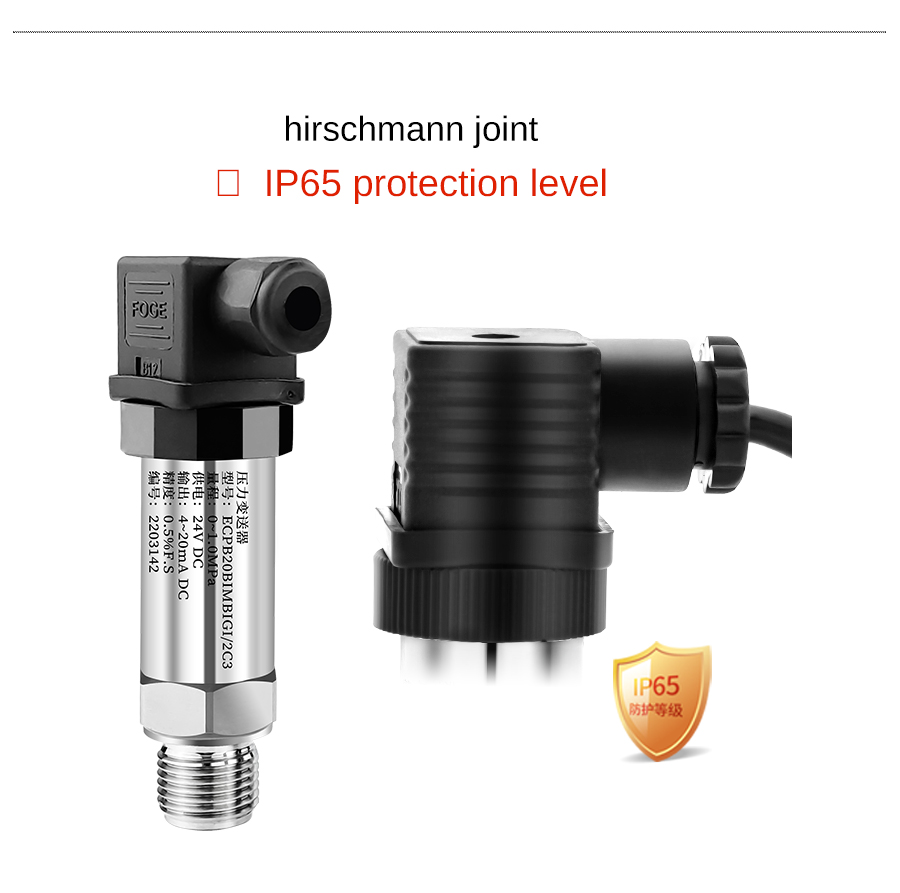

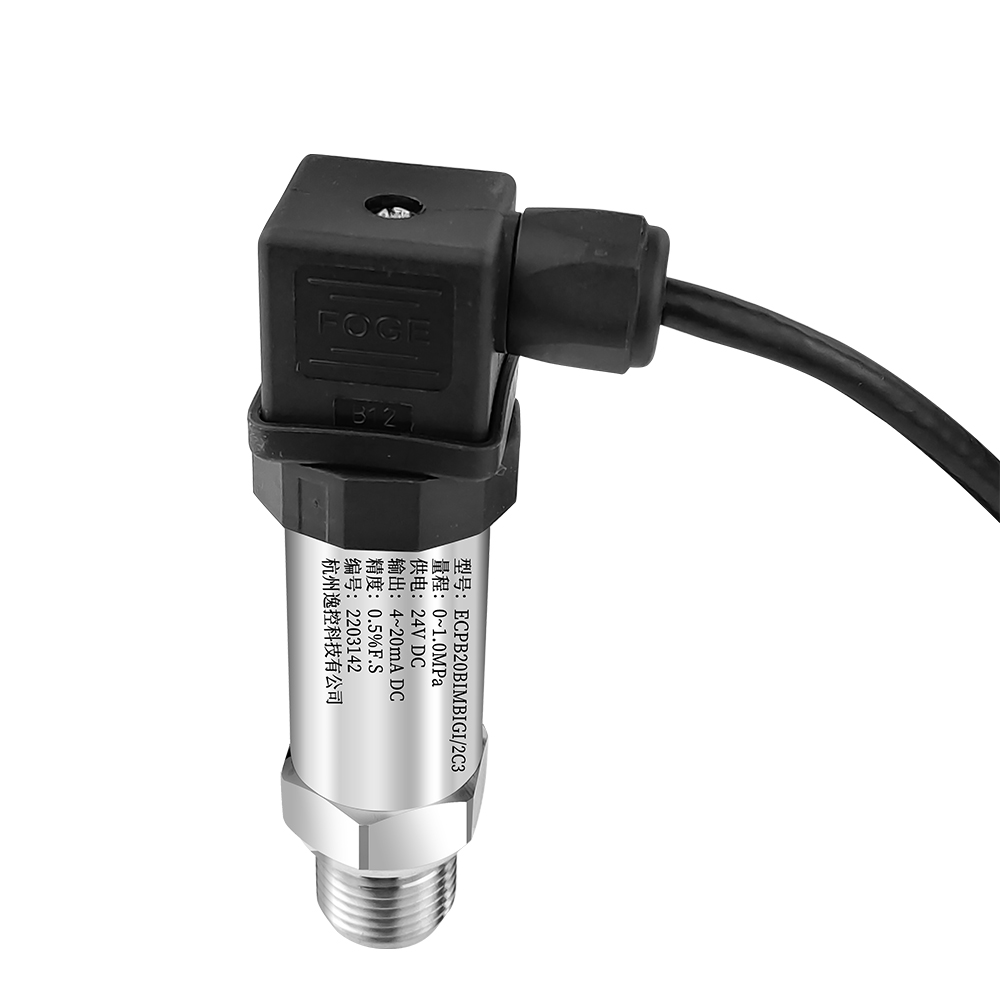

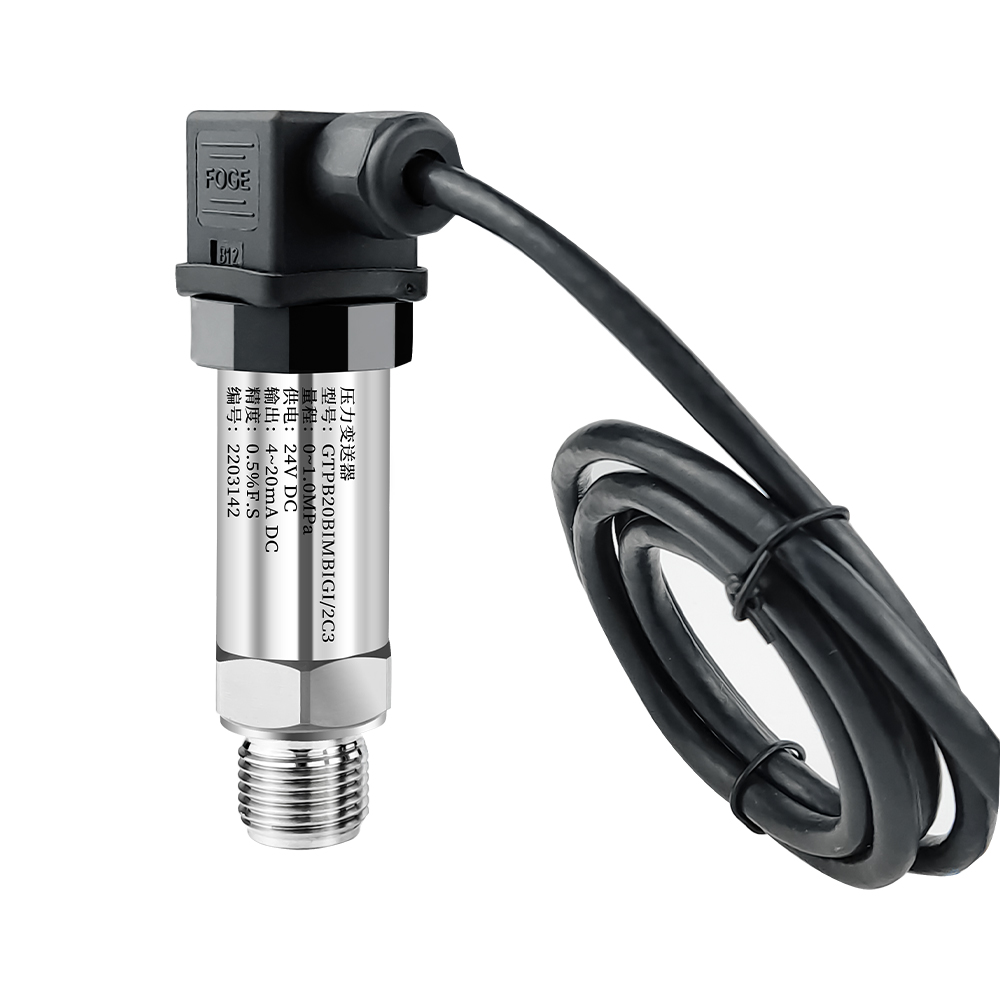

| Electrical Connector | DIN 43650 Hirschmann plug or M12 waterproof circular plug |
| Protection Rating | IP65 / IP67 hygienic stainless steel housing |
