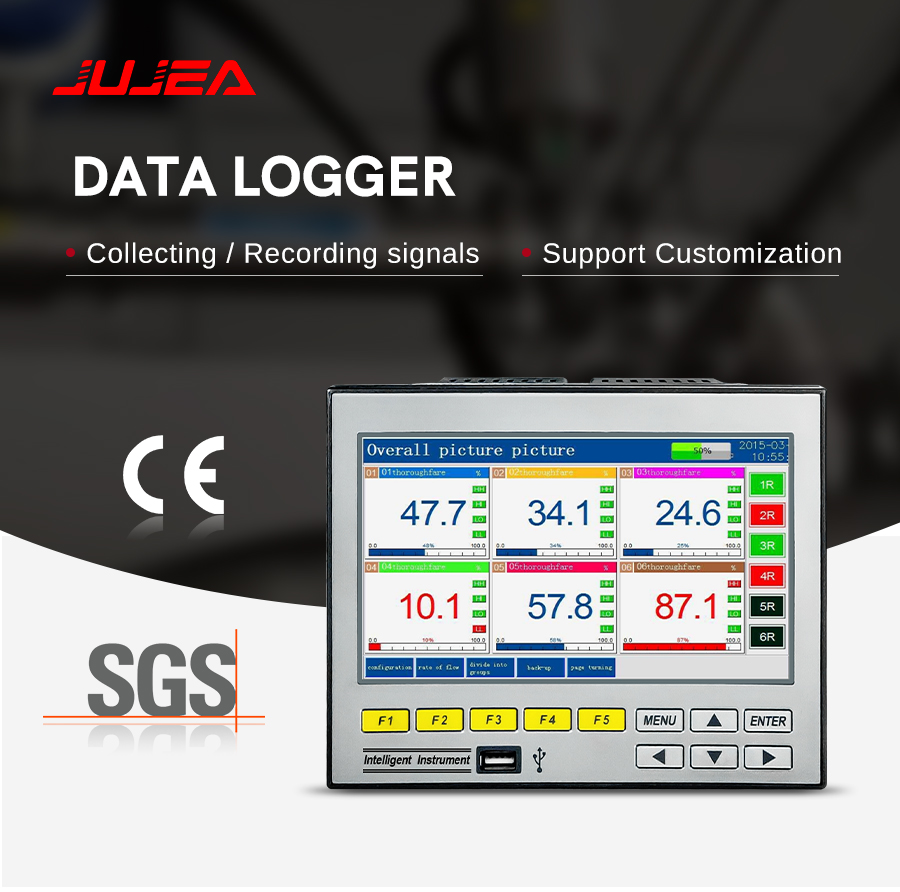

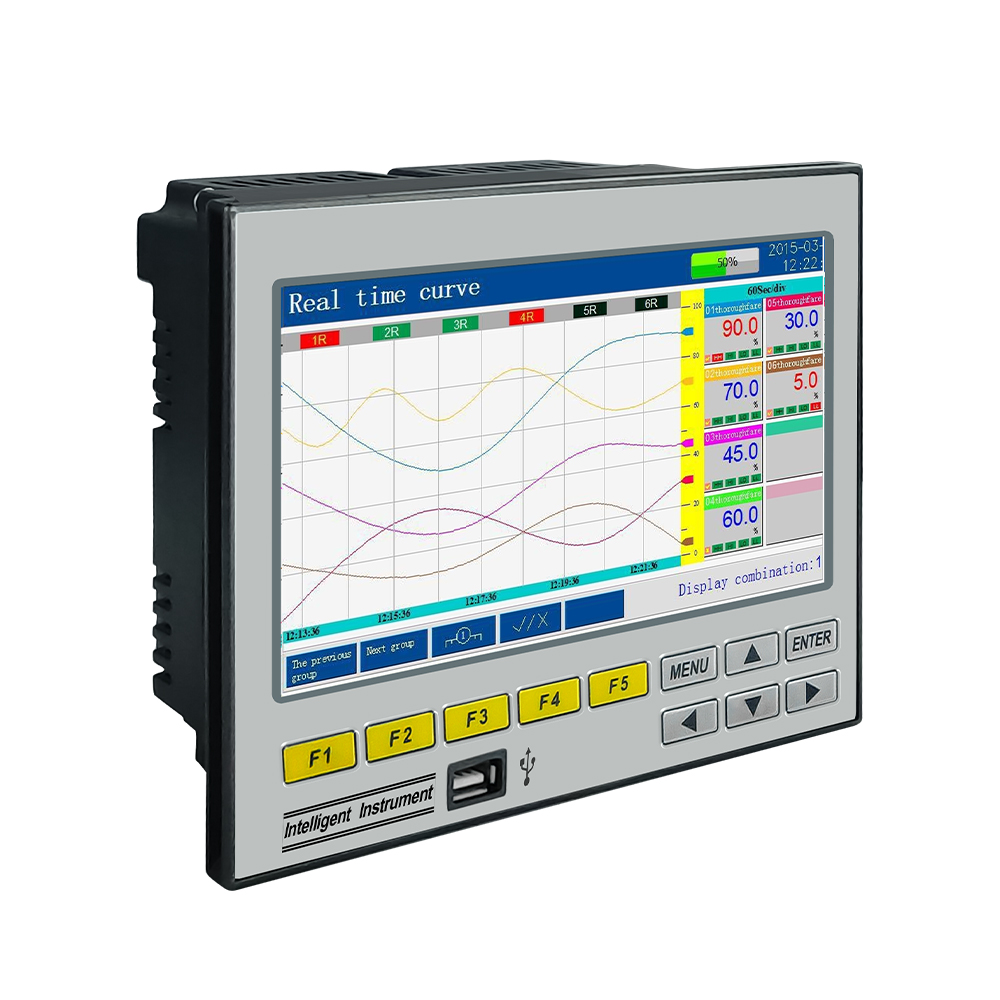

GT71R Paperless Recorder

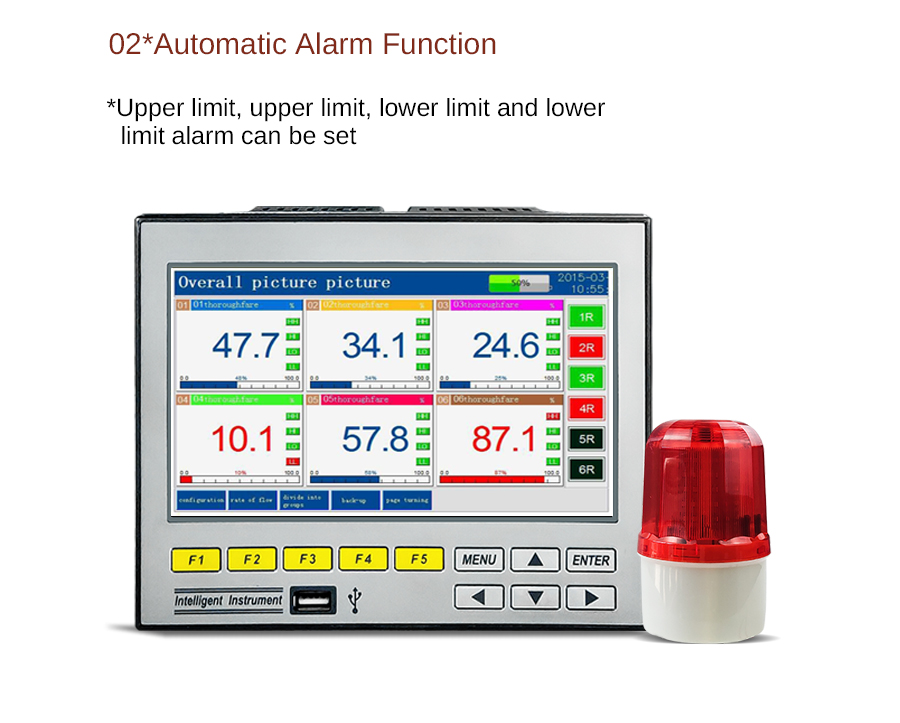

A small thickness, high integration, colorful, comfortable operation, complete function, high reliability and cost-effective products has great practical significance.Our company research and development of ultra-thin widescreen paperless recorder, designed to meet the user's rational demands, improve the user experience, mainly used in petroleum and petrochemical, chemical, paper making, plastic, textile printing and dyeing, metallurgy, building materials, science and education of national defense, biomedical, municipal environmental protection, energy metering, food grain and oil, alcohol, tobacco, beverage, equipment manufacturing, complete equipment and agriculture, forestry and animal husbandry, fishery and so on a variety of industries. Characteristics ● 16-channel input ● Supports up to 6 relay alarm outputs ● Recording interval 1-240S, divided into 11 levels in total ● Support customized services
  • Specification

Technical Specifications & Engineering Parameters

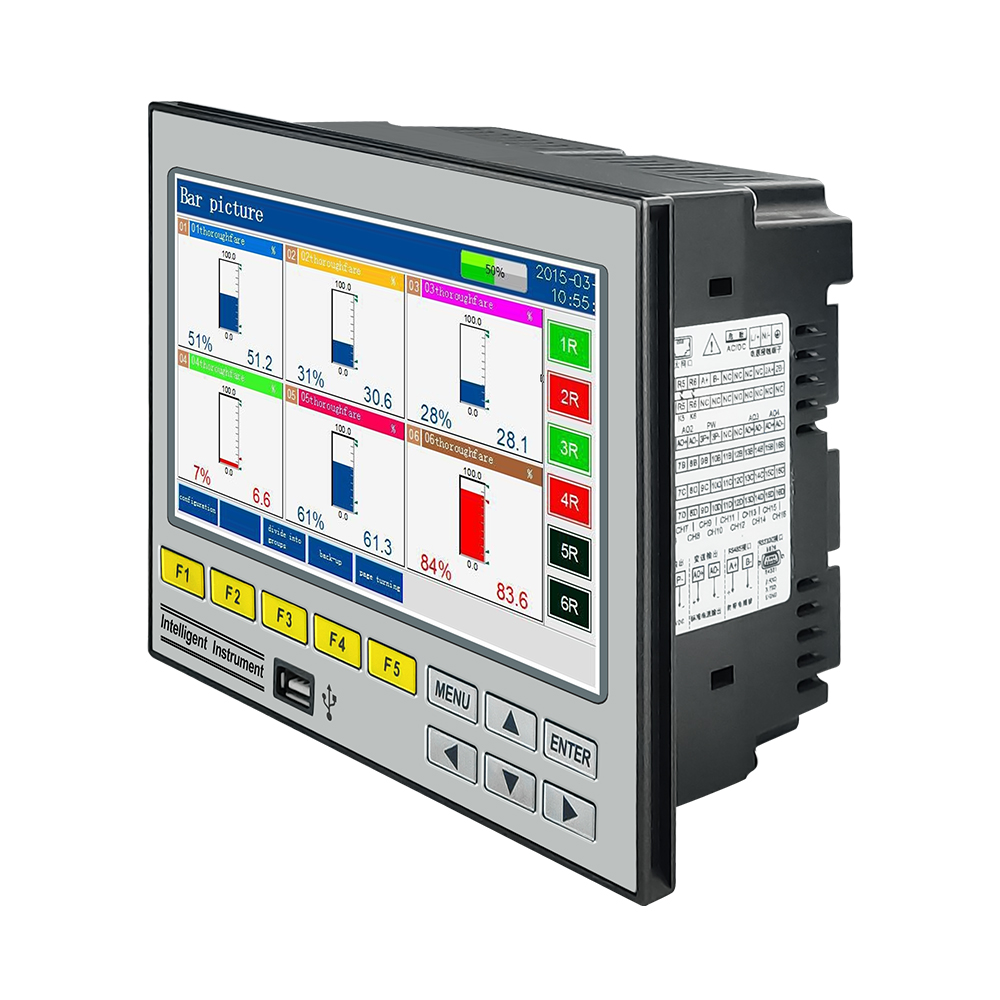

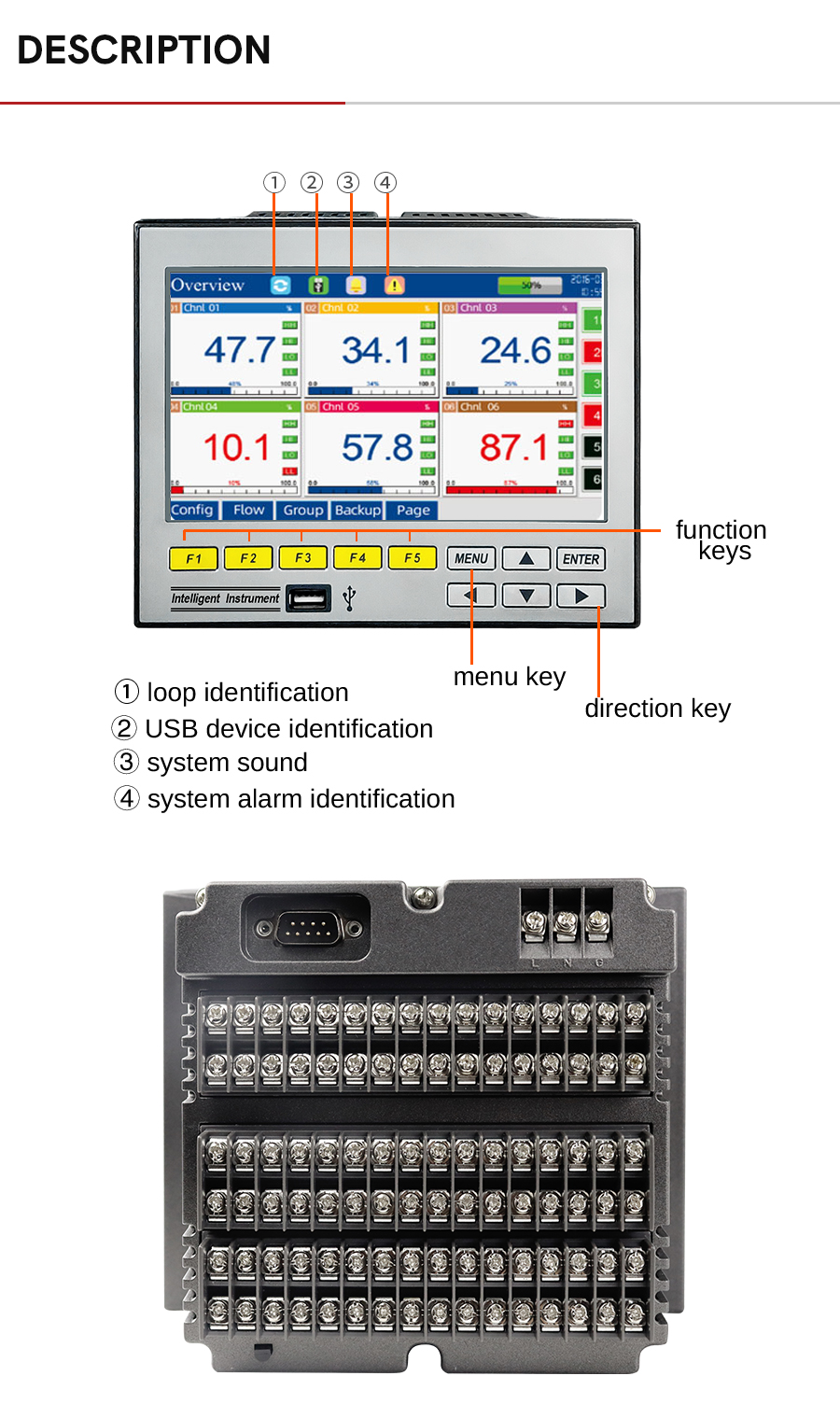

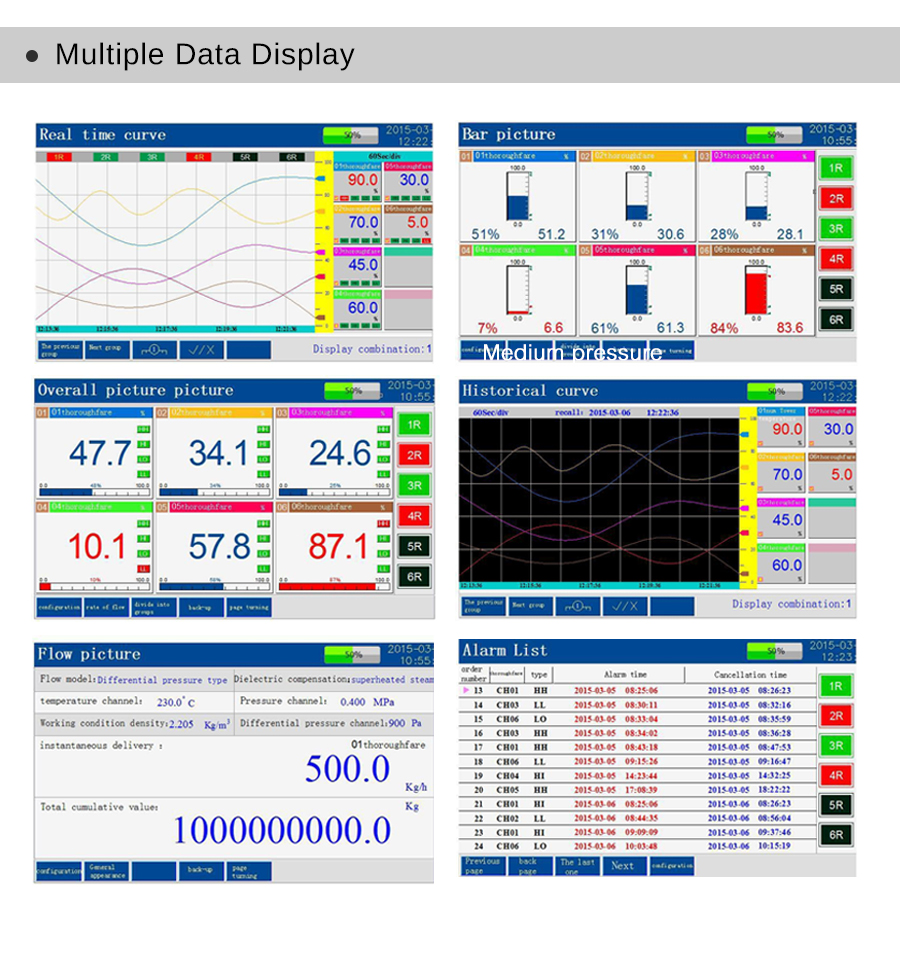

Display Interface 7.0-inch 65K True Color TFT LCD (800×480 resolution)
Input Channel Capacity 6 to 24 universal isolated analog channels

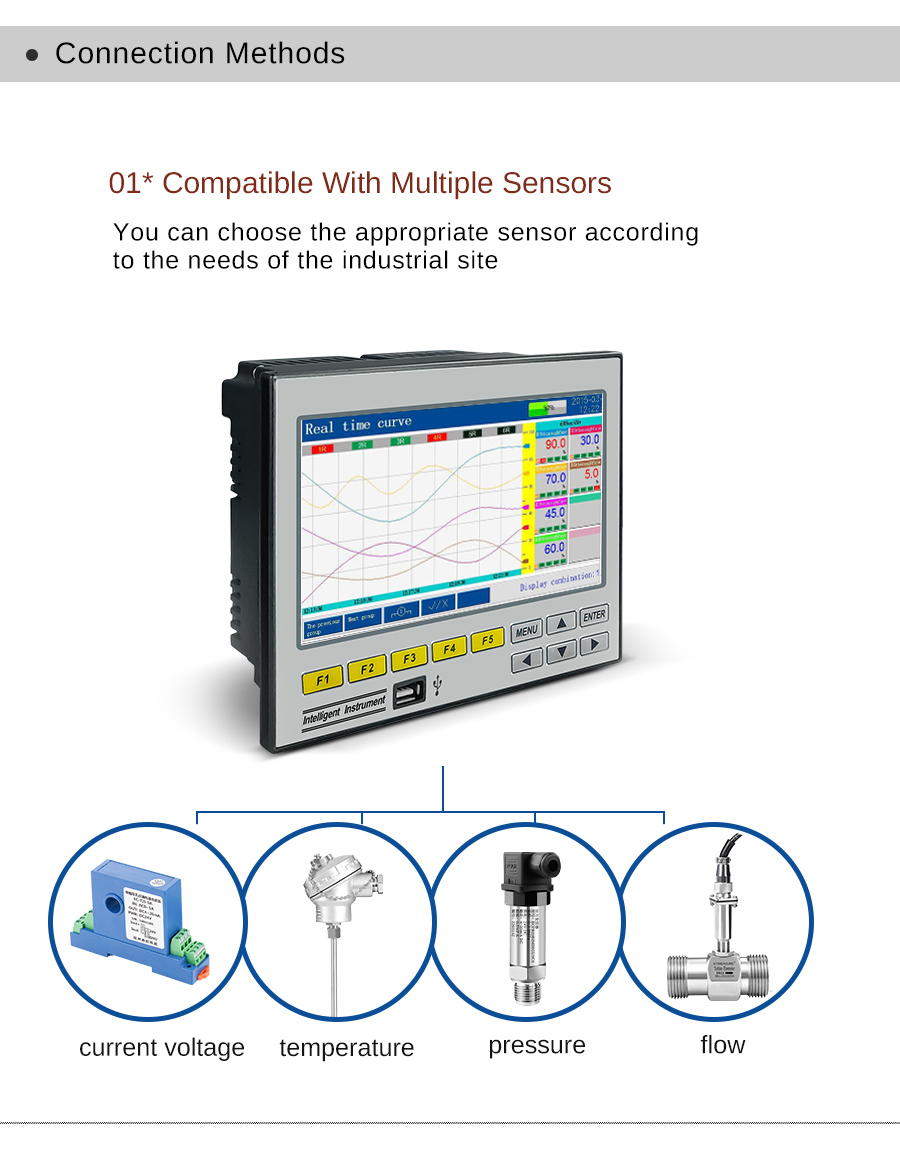

Signal Inputs Standard Thermocouples, 3-wire RTDs, Standard current loops 4-20mA, DC voltage up to 10V
Measurement Precision ±0.15% to ±0.2% F.S.
Data Storage 512MB internal high-speed memory + USB 2.0 port for flash drive export
Recording Interval 1s, 2s, 5s, 10s, 30s, 1m, 2m, 5m, 10m, 30m, 1h
Math Calculation Supports real-time channel arithmetic, differential, averaging, and totalizing formulas
Network Connectivity RS485 Modbus-RTU and Ethernet RJ45 (Modbus-TCP / Web browsing)
Sensor Excitation Dedicated 24V DC distribution per card module
Power Supply Universal 85-265V AC 50/60Hz (Optional 24V DC)

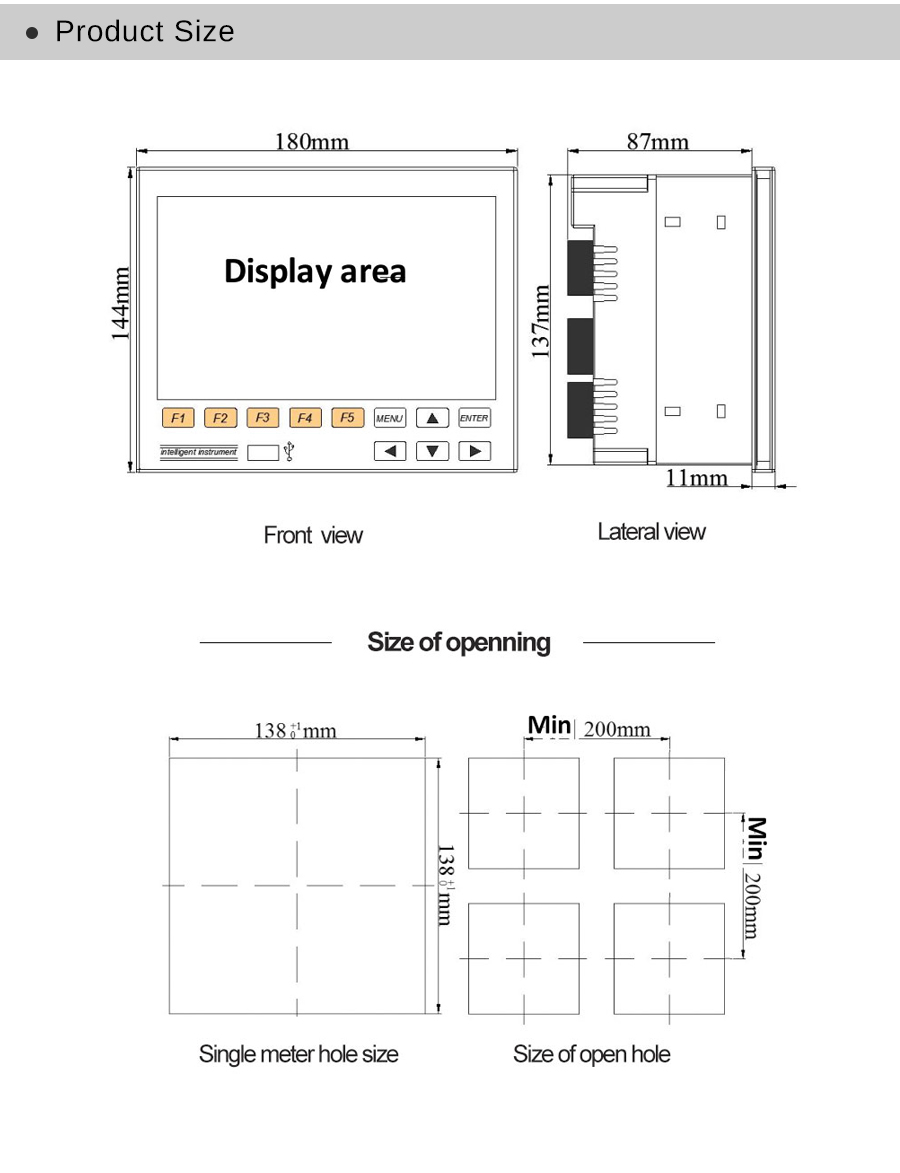

Mounting Standard DIN 144×144mm cutout (138×138mm panel hole)
