Technical Specifications & Engineering Parameters
| Measurement Principle | Transit-time ultrasonic time-difference method |
| Applicable Pipe Size | DN25 to DN1200 (1" to 48") |
| Measurement Accuracy | ±1.0% of reading (Velocity > 0.3 m/s) |
| Applicable Liquids | Water, chilled/hot water, industrial effluent, light chemical solutions |

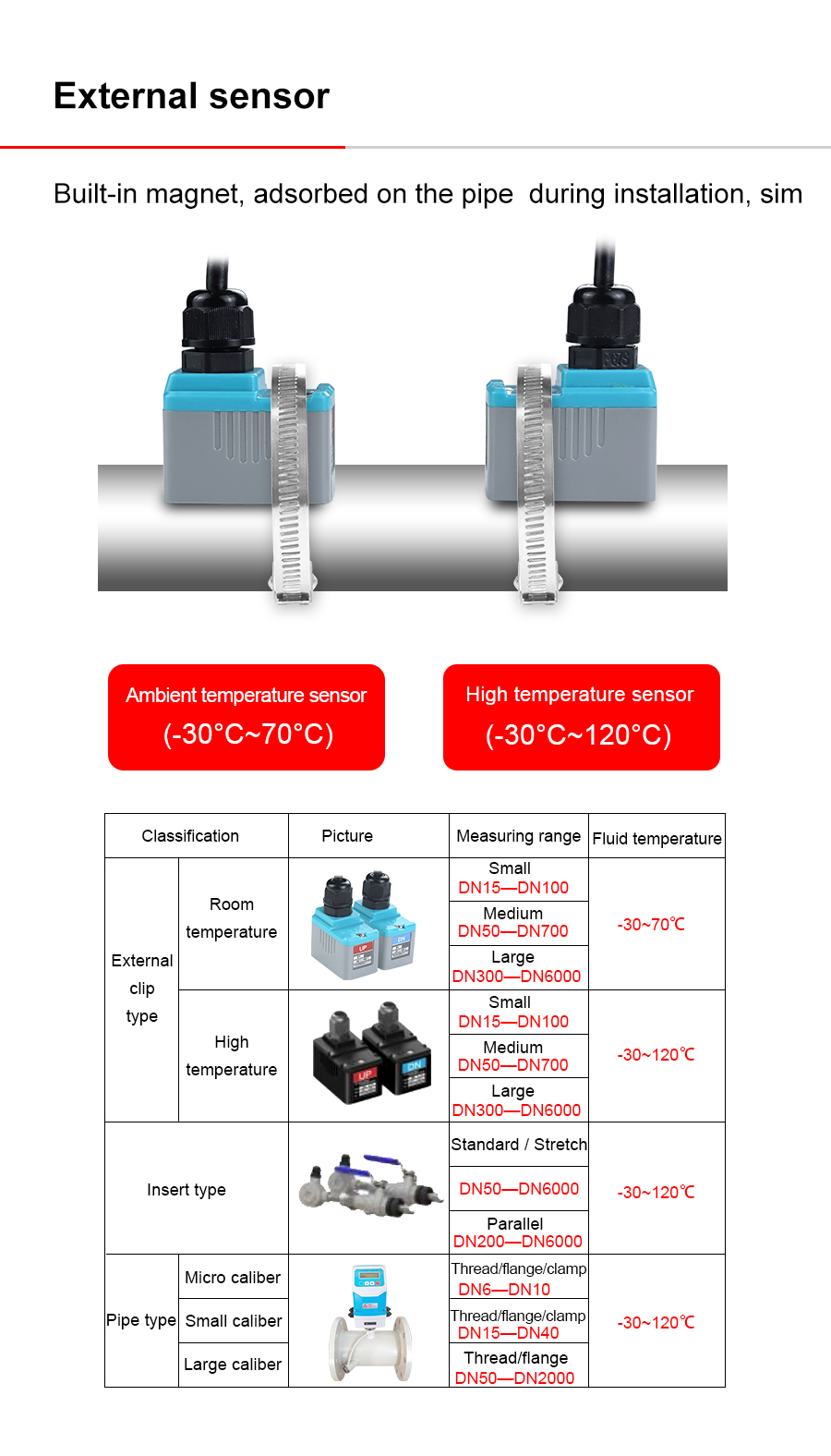

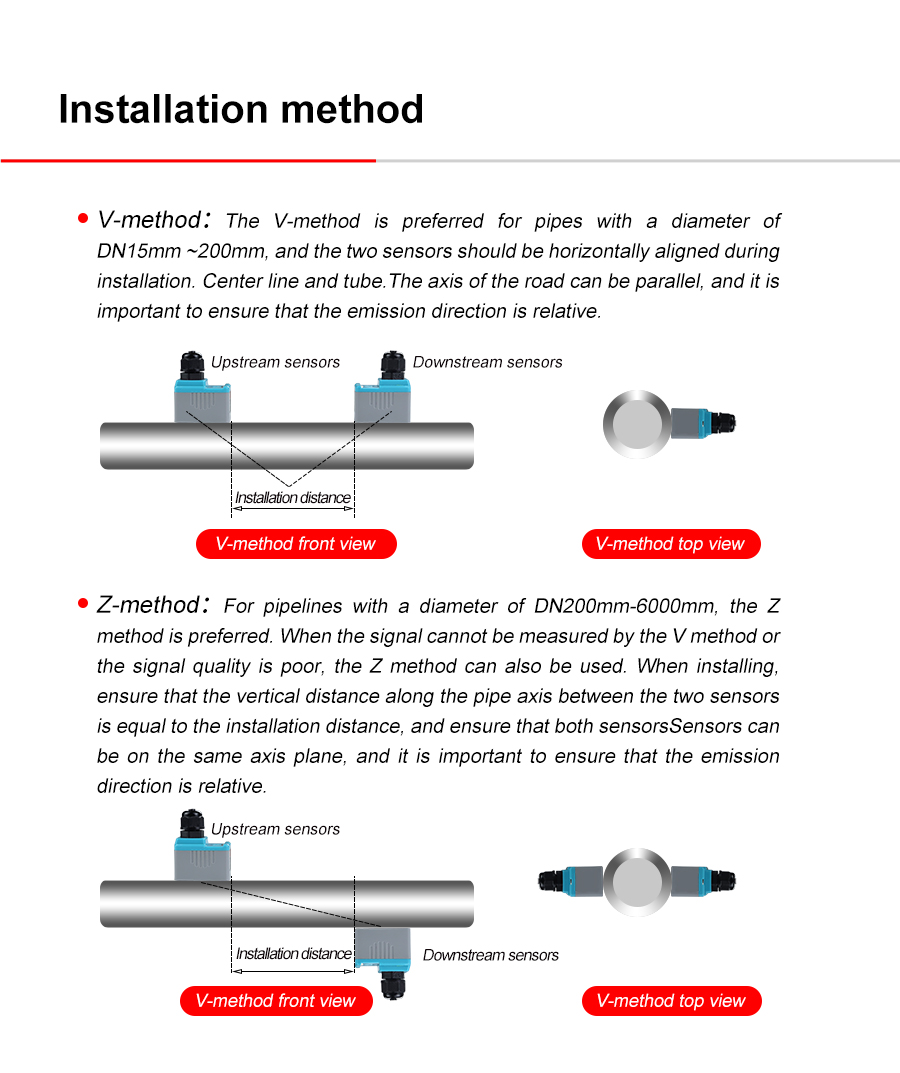

| Sensor Installation | External clamp-on V-method (DN25-DN200) / Z-method (DN200-DN1200) |
| Fluid Temperature Range | -20°C to +110°C |
| Display & Operation | Backlit 2×20 character LCD display with 4-key tactile keypad |
| Signal Outputs | Active 4-20mA current loop, Scaled frequency/pulse, RS485 Modbus |

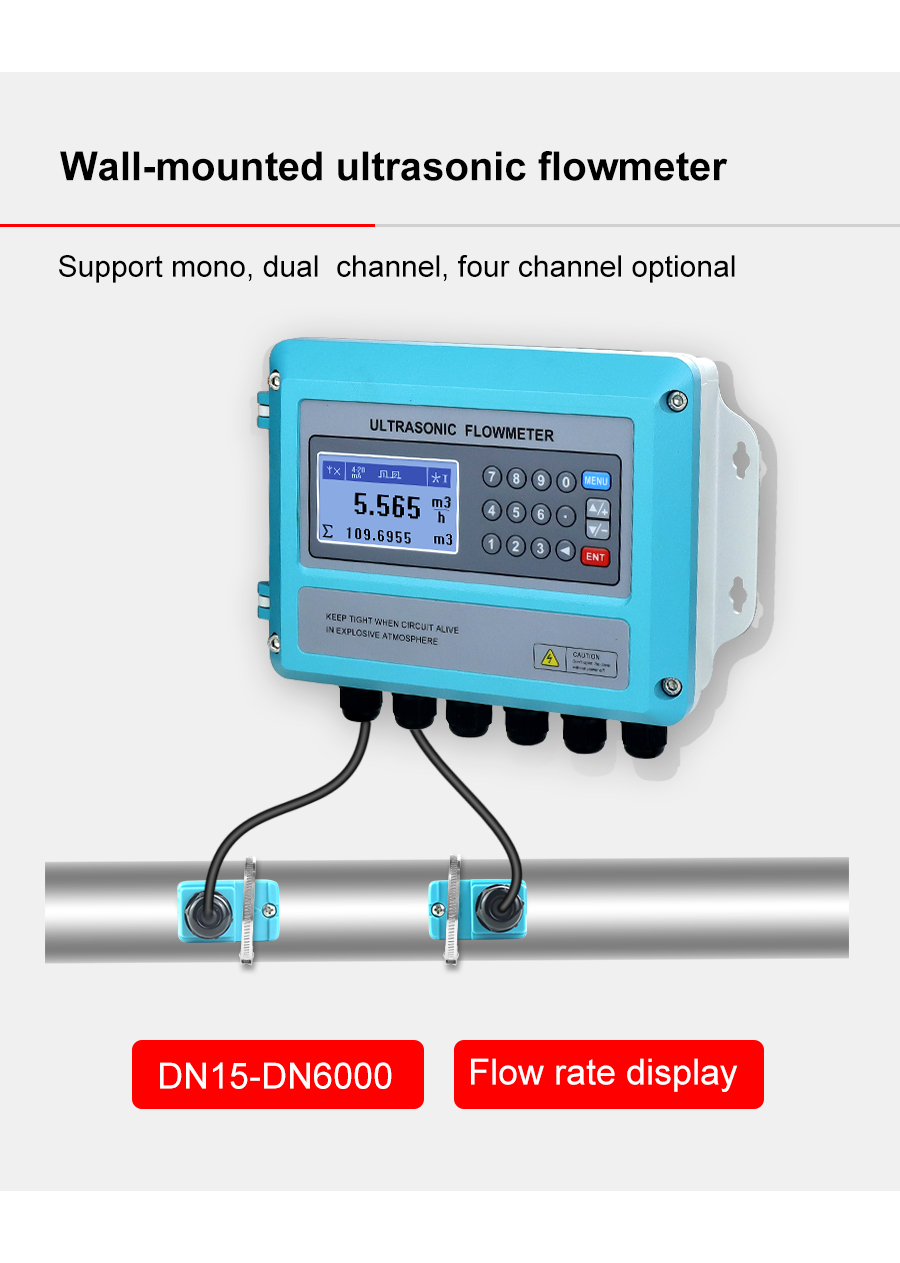

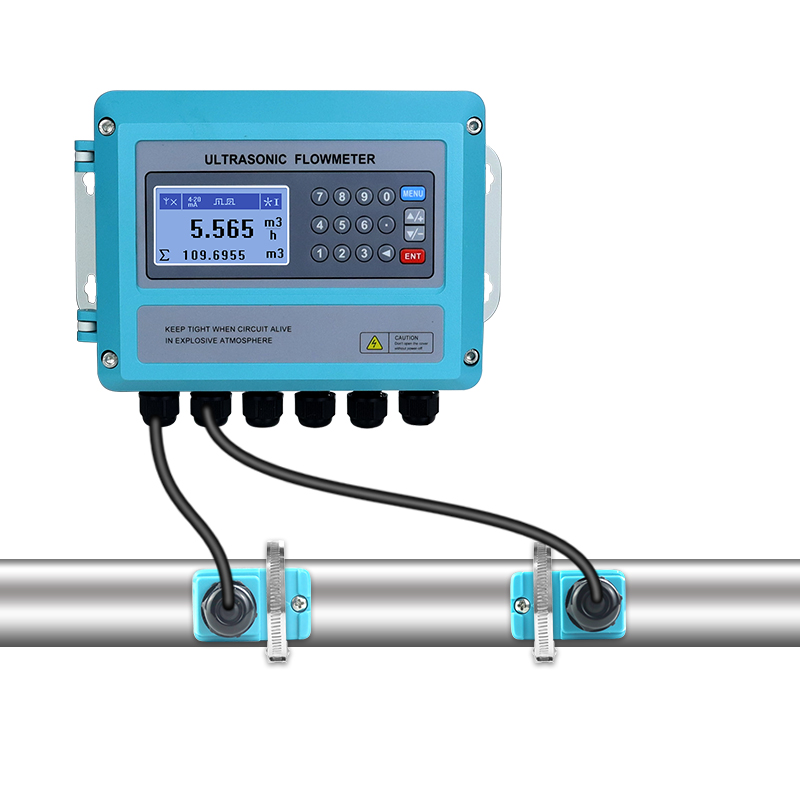

| Mounting Type | Industrial wall-mounted enclosure with waterproof cable glands |
| Power Supply | 220V AC (50/60Hz) or 24V DC |
| Protection Rating | IP67 weatherproof wall-mount converter; IP68 transducers |
