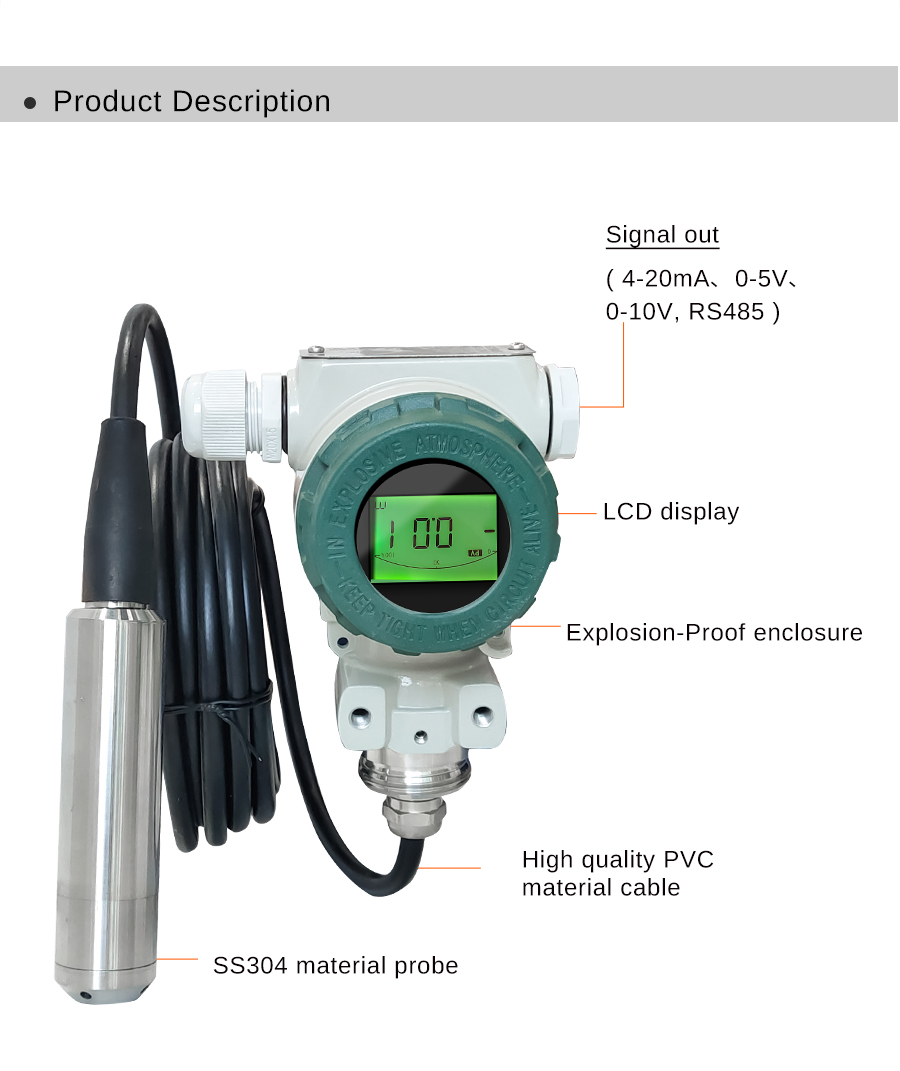

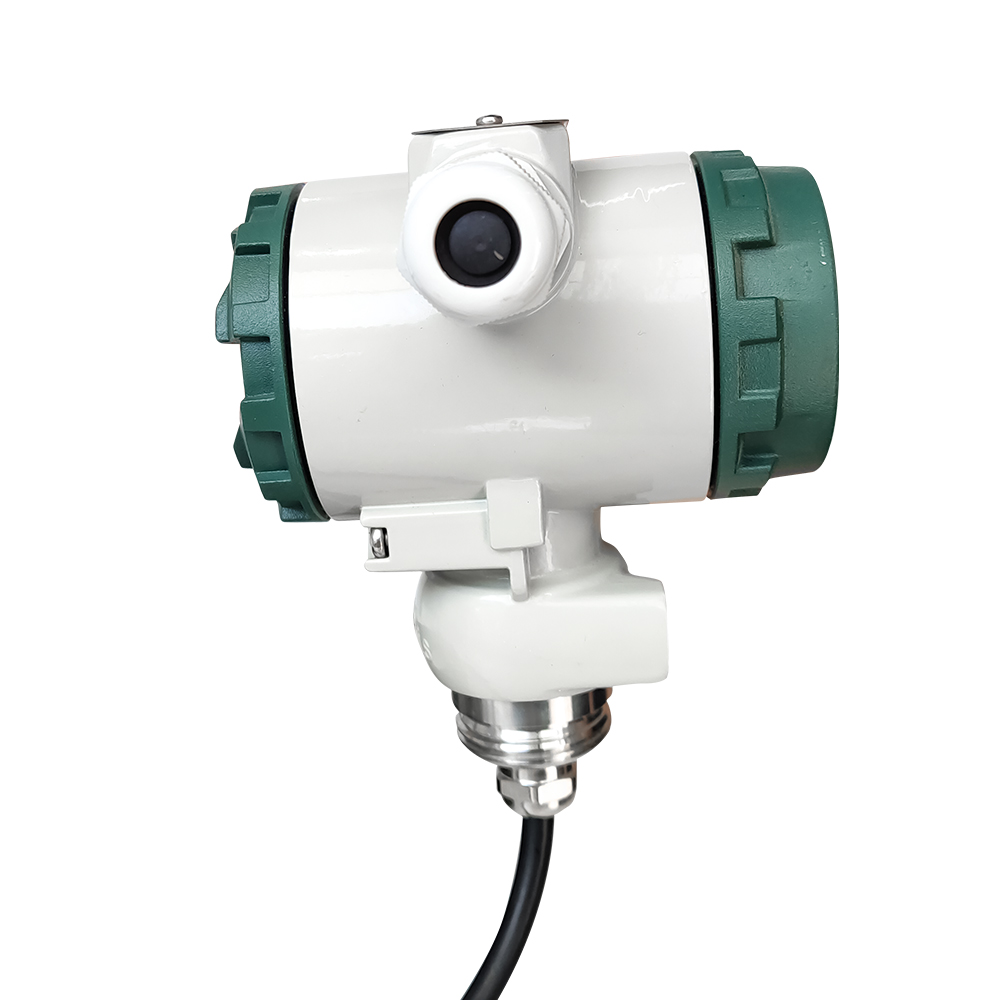

Submersible level gauge

Good stability, long-term stability of full scale and zero position can reach 0.2%FS/year. The temperature of the measuring medium is in the range of 0~300℃, the temperature drift is less than 0.2% FS, and the temperature drift is less than 0.5% FS in the entire allowable operating temperature range. It is easy to install, simple in structure, economical and durable. Characteristics ● 0-200m large range ● 304 stainless steel shell ● Digital smart meter ● Diffused silicon core, high-precision measurement
  • Specification

Technical Specifications & Engineering Parameters

Measurement Principle Hydrostatic pressure measurement proportional to liquid depth (P = ρ·g·h)
Measuring Range 0-1 meter up to 0-200 meters H2O column
Measurement Accuracy ±0.5% F.S. (Standard) / ±0.25% F.S. (High precision option)

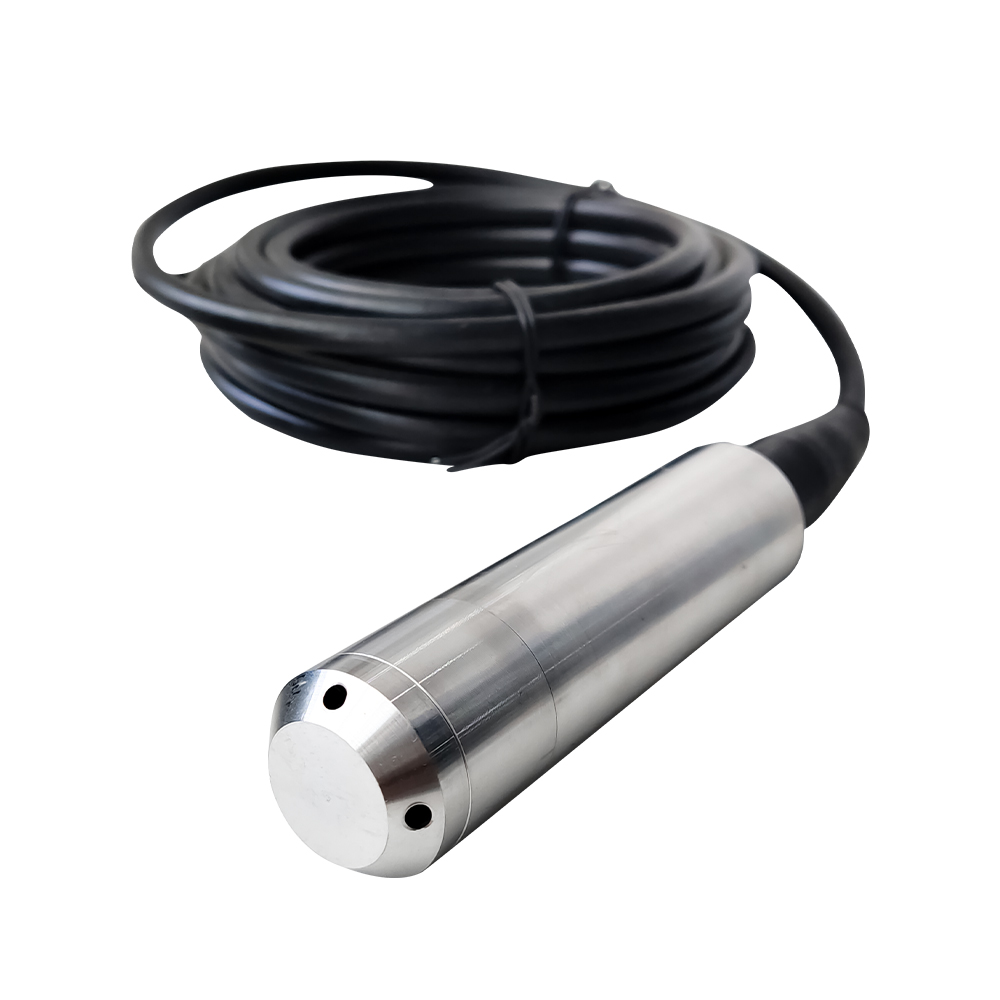

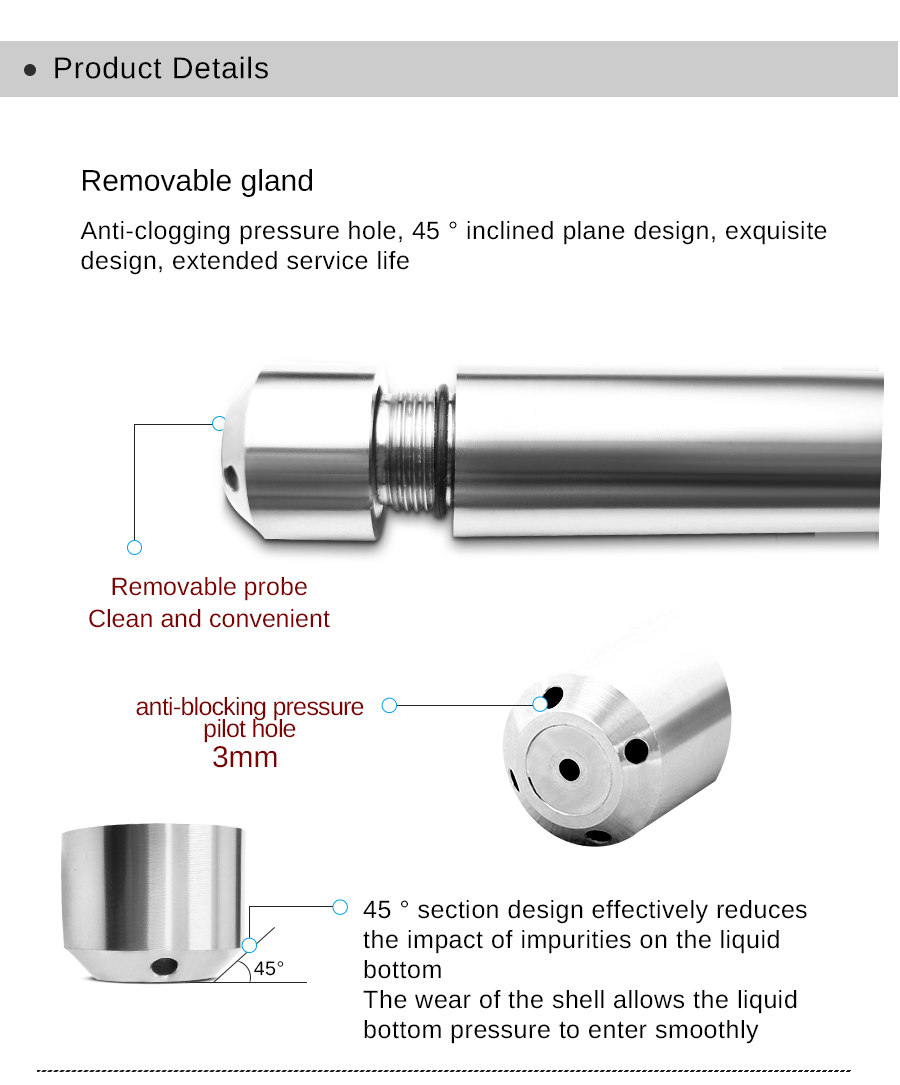

Sensor Probe Material Stainless steel 316L (Probe outer diameter: 28mm / 19mm compact)
Cable Construction Special vented polyurethane (PUR) / PE / PTFE cable with atmospheric reference tube and Kevlar tension core
Applicable Liquids Deep well water, reservoir, water storage tanks, sewage, river water
Medium Temperature -10°C to +70°C (Anti-freezing design)
Output Signal Standard 2-wire 4-20mA analog current loop (Optional 0-5V, RS485 Modbus-RTU)
Power Supply 12V to 36V DC (Standard 24V DC)

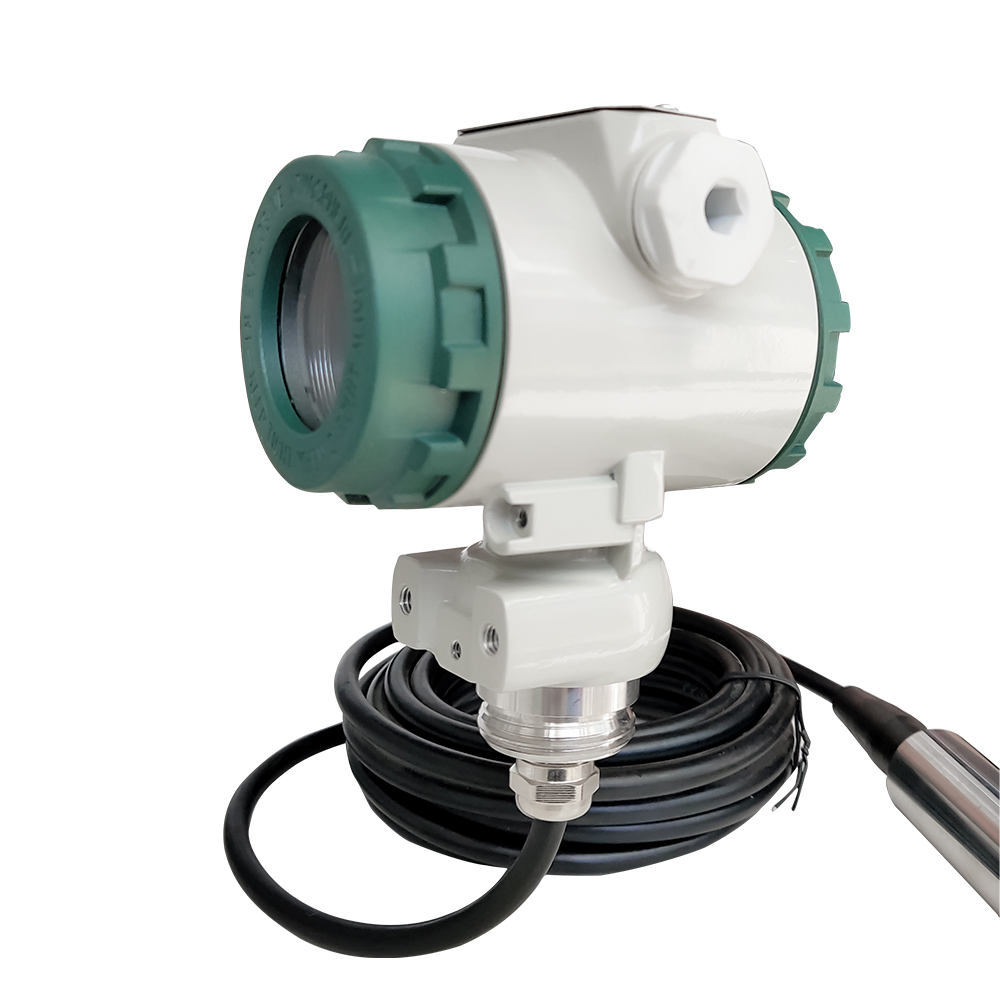

Ingress Protection Sensor probe: IP68 permanent submersion; Junction box / Display head: IP65

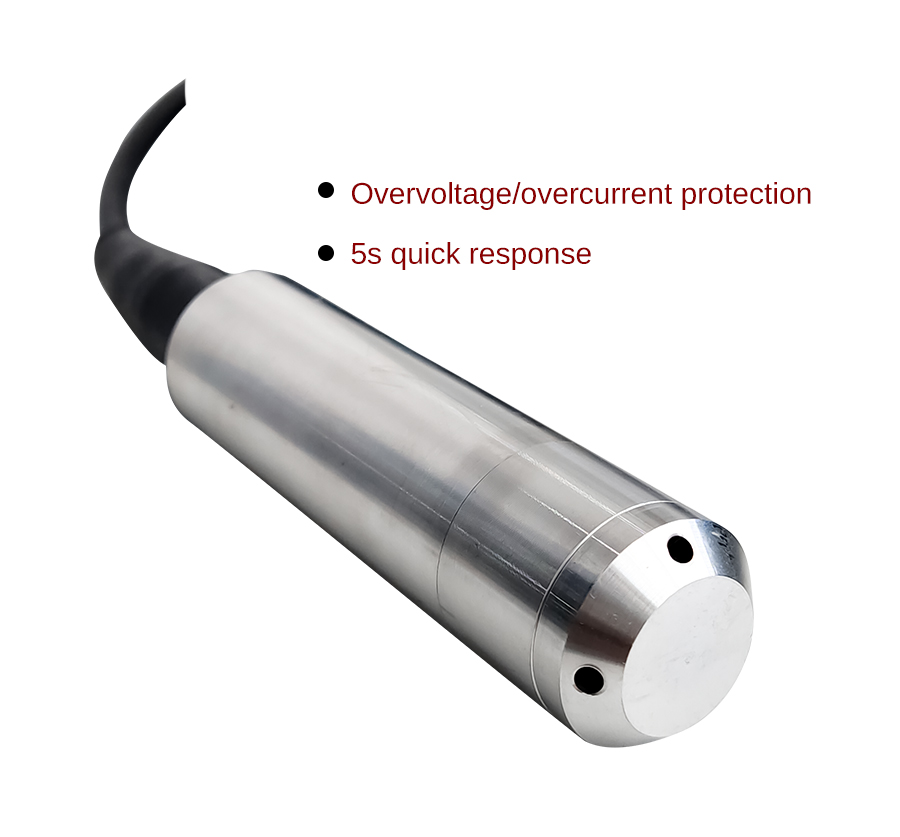

Lightning Protection Built-in dual surge and transient voltage suppressor (TVS) circuit
